87.5Ah High Energy Density NCM Battery For Electric Truck
87.5Ah High Energy Density NCM Battery For Electric Truck 87.5Ah High Energy Density NCM Battery For Electric Truck
Contact Now

87.5Ah High Energy Density NCM Battery For Electric Truck

Minimum Order Quantity : 10 Price : Negotiation
Packaging Details : carton box package Delivery Time : 20000 pcs/ day
Place of Origin: China Brand Name: Soundon
Certification: CE,ROHS,MSDS,UL Model Number: SD-EV-3.6-87.5

Detail Information
Battery Module: 3.2V87.5AH Dimension: 232.5×97×45.3
Case Material: Aluminum Case Instantaneous Discharge Current: 3C
Battery Cell: SEPNi8688190P-17.5Ah Battery Type: Pouch NCM Battery
Application: E-trucks, Fork Lifts ,house Storage Power,off-grid Solar Energy
High Light:

High Energy Density NCM Battery

,

Electric Truck NCM Battery

,

87.5Ah Electric Truck Battery

Product Description

87.5 Ah NMC High Energy Density Electric Truck Battery with UN38.3 And UL Certificate

Specifications:



Battery Cell :



Voltage: 3.65V

Capacity: 17.5Ah

Charging end voltage: 4.2V

Discharging end voltage: 2.75V

Standard charging current: 0.2C (4A)

Standard discharging current: 0.5C (10A)

Maximum constant discharging current: 1.0C (20.0A)

Maximum instantaneous high load current: 3.0C (60.0A)

  • Dimensions:
  • Thickness: 8.6mm
  • Width: 8.8mm
  • Length: 190mm
  • Weight: ≤500g
  • Self resistance: ≤2mΩ
  • Recycle life: 1000 times at 0.5C charging/discharging
  • Can be made for many kinds of batteries, final shapes can be customized

Battery Module :





Item Specification
Nominal Capacity
 		 87500mAh ,0.5 C discharging(25±2℃)
Typical Capacity 88750mAh ,0.5 C discharging(25±2℃)
Nominal Voltage  3.65V
Energy density  196Wh/kg
Charge Ending Voltage 4.20V
Discharge Ending Voltage 3.00V
Standard Charging Method 25±2℃ 0.5C constant current charge to 4.2V, then constant voltage
4.2V charge till charged current declines to ≤ 0.05C
Max. Constant Charging
Current		 1C (15℃～45℃)
Max. Pulse Charging
Current		 1.5C (15℃～45℃) ≤30S
Standard Discharging
Current		 25±2℃
0.5C constant current discharge to 3.0V.
Max. Constant Discharging
Current		 1C (-20℃～+45℃)
Max. Pulse Discharging
Current		 3C (15℃～45℃) ≤30S
Operating environment Charging: -10℃-55℃, max.90%RH
Discharging: -20℃-55℃, max.90%RH
Impedance 0.491~0.543mΩ
Module Weight 1.61kg±0.05k










Advantage :



(1) Output with high efficiency: standard discharge current is 0.5C-0.8C , instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 60°C temperature. The battery structure is safe and good.
(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under-20°C.
(4) Good safety performance: when the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell (80% DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h

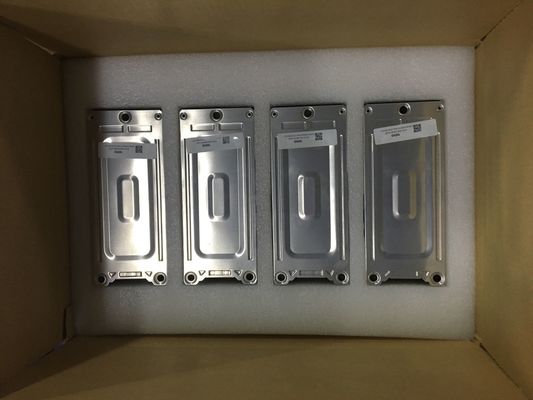

Mass production

87.5Ah High Energy Density NCM Battery For Electric Truck 0


APPLICATION :



Electric vehicle :e-cars, e-buses, e-trucks, fork lifts, e-scooters  e- boat, Off-highway Vehicles

Power and Storage applications:house storage power, digital ,off-grid solar energy ,wind energy storage  , Telecom based station and backup power supply
