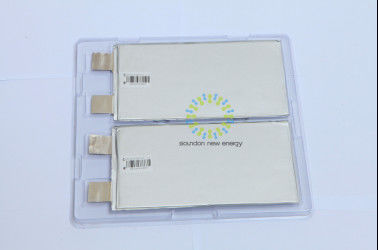

Long Life 3.2V 20AH Lifepo4 Lithium Battery For Electric Vehicle / Solar Energy Storage

Minimum Order Quantity : 10pcs Price : Negotiation
Packaging Details : PVC case with inner ,carton box outside Delivery Time : 25-30 days
Payment Terms : T/T or L/ C Supply Ability : 1000pcs/day
Place of Origin: China Brand Name: SOUNDON
Certification: UN38.3, ROHS Model Number: SEPFe80125256P-20000mAh

Detail Information

Voltage: 3.2V Discharge Ending Voltage: 2V
Capacity: 20Ah Max Charging Current: 1C
Dimension: Tickness:8.0*Width:125*Hight:256(mm) Max Discharging Current: 3C
Charging Ending Voltage: 3.65V Cycle Life: >2000 Times
High Light:

lithium iron phosphate battery

,

rechargeable lithium ion battery

Product Description



Long Life 3.2V 20AH Lifepo4 Lithium Battery For Electric Vehicle / Solar Energy Storage





Specifications:

NO .

Item

Specification

1

Nominal Capacity

20000mAh

2

Nominal Voltage

3.2V

3

Charge ending voltage

3.65V

4

Discharge ending voltage

2V

4

Standard charge current

25±3℃ 0.5Cconstant current discharge to 3.65V ,then constant voltage 3.65V charge till charged current cut off to 0.02C

6

Standard discharge voltage

25±3℃ 0.5C constant current discharge to 2V

7

Max charge current

Max charge 1C

8

Max discharge current

Max discharge current 3C

9

Operating temperature

Charging :0~45℃,max 90%RH

Discharging :-20℃ ,Max 90%RH

10

Impendence

< 2.5 m

11

Cell weight

525±20g

12

Storage temperature



13

Cycle life

>2000 cycle life

Test method :

Charge :0.5C to 3.65V

Discharge:1C to 2V

14

High rate discharge capacity

Discharge capacity :

1C>90% initial capacity

2C>90% initial capacity

3C>85%initial capacity





Description:

(1) Output with high efficiency: Standard discharge current is 0.5C-0.8C , instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 60°C temperature. The battery structure is safe and good.

(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°Cand discharge capacity decreases to over 70% under-20°C.

(4) Good safety performance: When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell (80%DOD).

(6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





Applications:

Large electric vehicle: electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles
Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair
Power tools: electric drill, electric saw, lawn mower
Remote control cars, boats, aircraft and other toys
Solar and wind power energy storage equipment
UPS and emergency lights, warning lights, miner's lamp (best safety)





Competitive Advantage:

 1. Provide customization, global after-sales service.

2. Ensure the consistency and the extension of battery pack life.

3. Stable discharge voltage performance, good rate performance, excellent cycle life, perfect safety performance.

4. Eco-Friendly and environmentally friendly.

5. UN38.3, UL certifications and standards of ROHS.

6. International advanced automatic production and inspection equipment fully installed in UL safety Testing lab & Battery performance Testing lab.
