Electric Bike / Scooters Lithium Polymer Rechargeable Batteries Light weight 3.7V 5AH

Minimum Order Quantity : 10pcs Price : Negotiation
Packaging Details : PVC case with inner ,carton box outside Delivery Time : 25-30 days
Payment Terms : T/T or L/ C Supply Ability : 20000pcs/day
Place of Origin: China Brand Name: SOUNDON
Certification: UN38.3, ROHS,MSDS Model Number: SEPMn6566136P/ 5Ah

Detail Information

Voltage: 3.7V Capacity: 5Ah
Charge Cut Off Voltage: 4.2V Battery Material: Li NCM Prismatic Case
Dimension: 6.5*66*136mm Discharge Cut Off Voltage: 3.0V
Max Charge Current: 1C Max Discharge Current: 3C
High Light:

5AH Lithium Polymer Rechargeable Batteries

,

3.7V Lithium Polymer Rechargeable Batteries

Product Description

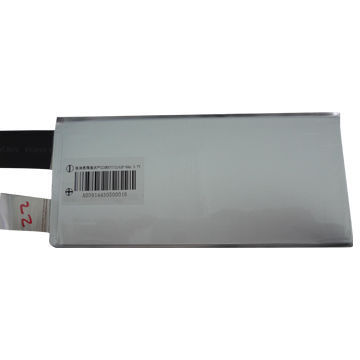

Light weight 3.7V 5AH Rechargeable Lithium ion battery For Electric Bike ,Scooters





Item Specification
Nominal Capacity 5Ah
Nominal Voltage 3.7V
Charge Cut off Voltage 4.2V
Discharge cut-off voltage 3V
Standard charge current 0.2C
Standard discharge current 0.5C
Max charge current 1C
Max discharge current 3C
Operating temperature Charge :0~45℃
Discharge :-20~60℃
Impedance <6.5 mΩ
Weight 120±15g







Description:

  • Good performance at different temperature, from -20 to 60℃.
  • Lighter weight and smaller dimension
  • Safety tests passed, high quality ensured
  • Good safety performance: no burning, no explosion.
  • Sample can be available to accept before bulk order.
  • We can provide customization, global after-sales service.

 Storage conditions of lithium ion battery cell



short period less than 1 month  : -20°C ~ +45°C,90%RH Max



Long Period more than 3 month :-10°C ~ + 45°C,90%RH Max



recommend storage : 15°C -35°C,85%RH Max




If the cell is stored for a long time, the cell’s storage voltage should be 3.7-3.9V and the cell is to be stored in a recommend storage conditions Also, it is recommended to charge the cell every six months
.

Storage of Lithium Battery Pack



1.The battery pack shall be storied within -10~45 range environmental condition.



2.If the battery pack has to be storied for a long time (Over 1 months),the environmental condition should be:Temperature: 23±5℃ ,Humidity: 65±20%RH



3.The capacity is 80-90% of nominal capacity.



4.When storing battery packs for more than 6 months, charge at least once every 6 months to prevent leakage and deterioration in performance due to self-discharging





Lithium battery  cells charge and discharge working principle:

Electric Bike  / Scooters Lithium Polymer Rechargeable Batteries Light weight 3.7V 5AH 0
