300Kwh IBMS ESS Battery Emergencey Power Supply For Energy Storage Sation

Minimum Order Quantity : 1 Packaging Details : 1PCS / Container
Delivery Time : 35day
Place of Origin: China Brand Name: Soundon
Certification: CE,ROHS UN38.3 Model Number: ES-001-729420-01

Detail Information

Rate Voltage: 729.6V Total Power: 300Kwh
Working Voltage Range: 570V~832V Battery Mocule: 729.6V140Ah
Batttery Pack Configuration: 3P1S Protection Level: IP54
Dimension: 6100*2440*2590mm Application: Energy Storage Station ,smart Microgrid ,factories Power Grid Supply
Battery Material: Lifepo4 Battery Pack
High Light:

ups power battery


high capacity deep cycle battery

Product Description

300Kwh IBMS ESS Battery Emergencey Power Supply For Energy Storage Sation




1 Rate Voltage 729.6V
2 Total Capacity 300kWh
3 Total Power :250KW
5 Protection Level IP54
6 Working temperature -10℃~55℃
7 Humidity <90%
8 Dimension 6100mm*2440mm*2590mm (20 ft Container )
9.Application :Energy storage station ,smart microgrid ,Factories power grid supply


battery pack system discription  :


  1. The energy storage system used 20ft container ,dimension :6100*2440*2590mm,there are  6PCS 364.8V140Ah (51Kwh) electric vehicle battery packs configuration to 3pcs energy storage module ,each battery module is 100Kwh which use different spec cells (pounch cell,18650,aluminum battery )and BMS supply to simulate the electric vehicle battery secondary use for big energy storage system.


2.Energy storage system with 3 PCS in parallel ,PCS, Automatic fire extinguishing system,cooling system and monitoring system to made,the rate voltage 729.6V, capacity 420Ah ,total power 300kwh



Project Features:

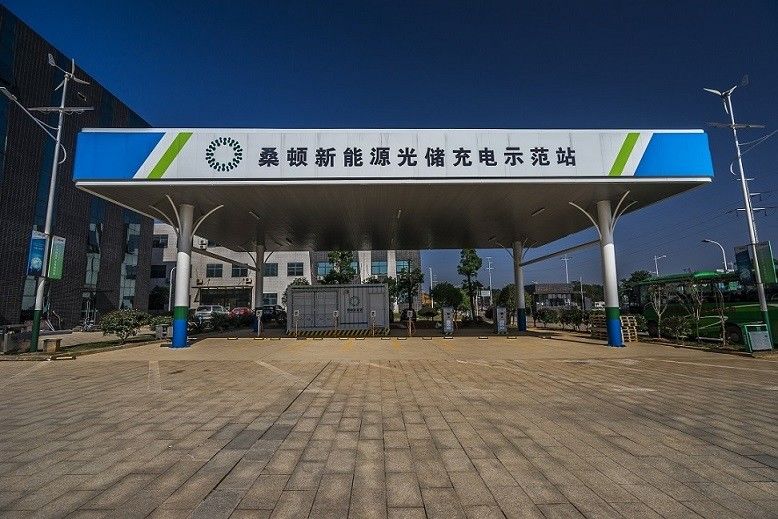

         The system which integrates storage system ,solar system and charging pile


1     Storage System


The system use 300kwh LiFePO4 battery as back up storage and equip a 250kw converter. While the system achieves the function of peak-load shifting by the AC control cabinet to grid connect the factory low voltage busbar.At the same time, it can switch between grid and off grid mode. When use the PV to generate, the system will be off grid and power supply the charging pile. The whole system is in the 20ft container.

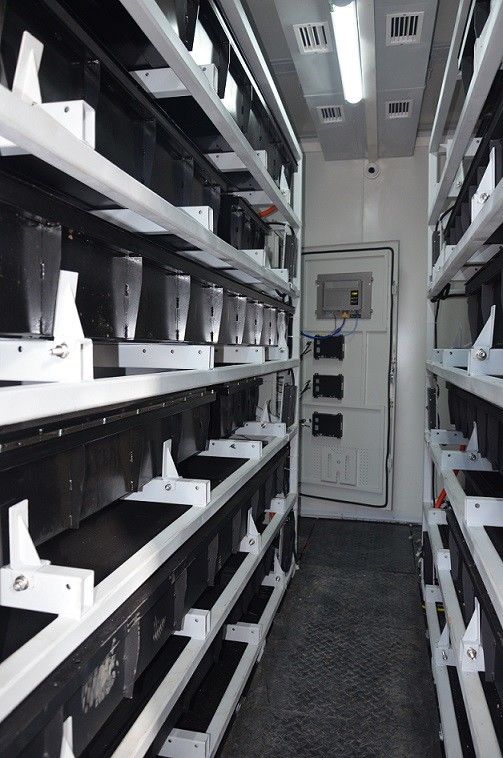

Then energy storage system constitute by Lithium Ion battery packs,BMS,A/C System,Monitor system, temperature control system (HVAC),BCP,fire fighting system(FFS),automatic alarm,fire proofing-heat insulation-fire,safe escape system etc.


2.Solar System


With solar panels installed on the top roof of the parking station,The solar system consists 2 *20kw converter and the designed power is 40kw.



     3.Charging System


     There are 2 bus and 5 passenger car parking space in the charging station which use 60kw fast charging pile and 7kw charging pile accordingly.




300Kwh IBMS ESS Battery  Emergencey Power Supply For Energy Storage Sation 0



Application :


Energy storage station ,home energy storage ,Emergency power supply ,Smart microgrid  , power grid frequency regulation ,distributed energy sources system

.New energy power generation and storage system, Micro Grid power generations ,Car charger station,industrialized energy storage station etc.


300Kwh IBMS ESS Battery  Emergencey Power Supply For Energy Storage Sation 1
