High Energy Density 91kWh Electric Truck Battery For Electric Water Vehicle

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : wooden package Delivery Time : 30 working days after payment
Supply Ability : 50units / week
Place of Origin: China Brand Name: Soundon
Certification: CE, MSDS, ROHS,UL Model Number: SD-EV-596.4-160

Detail Information

Voltage Range: 569.4V Capacity: 160Ah
Total Energy: 91kWh Voltage Range: 468~655.2V
Energy Density: ≥140Wh/kg Protection Level: IP65
Dimension: 1375*538*430mm Battery Cell: 3.65V32Ah
High Light:

li fe po4 battery


hybrid electric vehicle battery

Product Description

596.4V/160AH Electric Truck Battery With High Energy Density and Capacity For Sanitation truck



NCM lithium ion battery

Min Configuration: 5P78S

Battery Model :EV-014-569160-01

Rated Voltage:569.4V

Rated Capacity:160Ah

Working Voltage Range:468~655.2V

Total Energy:91Kwh

SOC working range:5%~100%

Outgoing state:50%~60%

Temp difference Range:≤10℃

Cell Voltage Difference:≤20mV

Cell Capacity difference:≤600mAh

C3(Ah)Rated Capacity:160Ah

Maximum instantaneous charging current (A) 10S:256A@25℃

Max Continuous:160A(25℃)

Instantaneous discharge current (A) 30S :280A@25℃

Continuous discharge current (A) :160A@25℃

Working Temp Range:Charge: 0-55℃/ discharge: -20-55℃

Storage Temp Range:20-45℃(1 month,50%SOC);

                                      -10-35℃(6 months,50%SOC);

                                      15-35℃(12 months,50%SOC)

Cycle life:≥1500cycle(25℃@1C)  Capacity≥80%


Cell quantity :780pcs

Energy Density(Wh/kg):142

Working humidity :15%-90%

IP grade:IP67

Cooling:natural cooling

Heating:PTC heating


Battery Module

Battery cell type :11217127

Battery capacity :32Ah

Nominal Voltage:3.65V

Configuration :5P6S

Module Size:410× 226× 149mm

Module Capacity:160Ah

Module Voltage:21.9V

Total Module Energy :3.504kwh





Battery cell  parameters


Type 11217127
Voltage Range 3.65V
Rate Capacity 32Ah
Charge ending Voltage 4.2V
Discharge ending Voltage 3.0V
Cycle Life ≥2000 times
Discharge Current continus1C;instaneous 3C,10s
charge current continus0.8C;instaneous 2C,10s
Working Temperature (charge and discharge ) -10℃~50℃/-20℃~55℃
Weight ≈0.545Kg
Energy Density ≈220Wh/Kg
Size(H*W*T) 127× 217×11(mm)

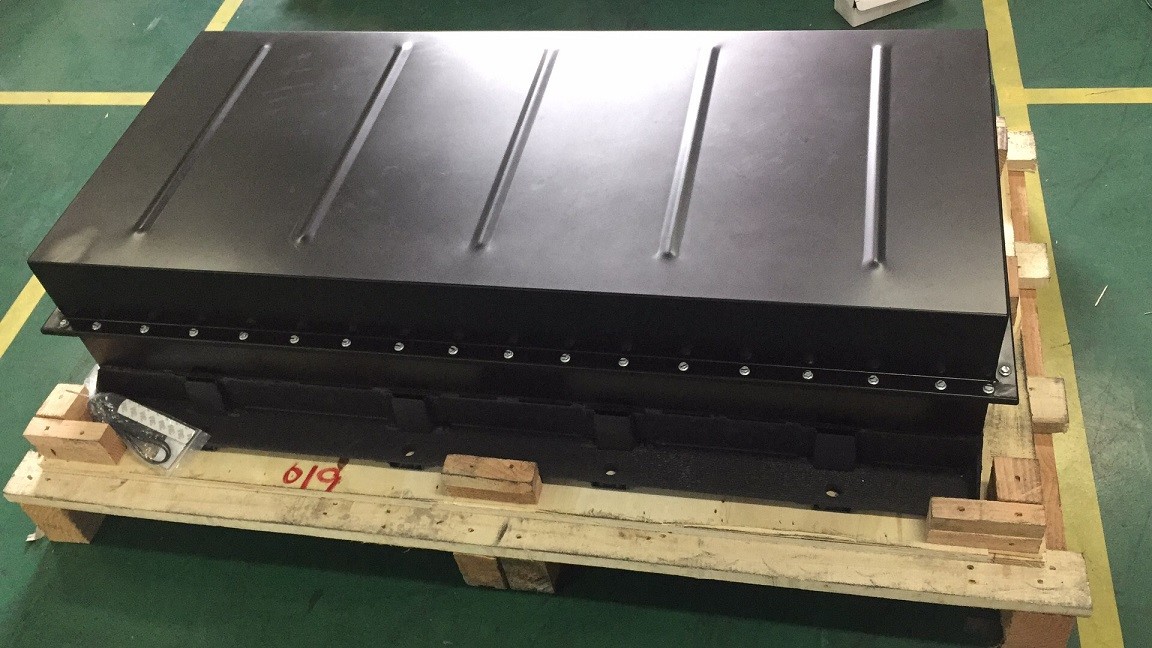

High Energy Density 91kWh Electric Truck Battery For Electric Water Vehicle 0


High Energy Density 91kWh Electric Truck Battery For Electric Water Vehicle 1
