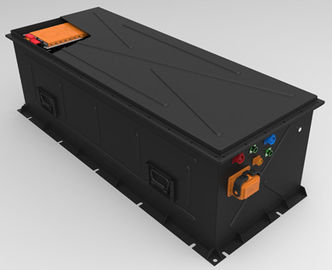

394.2V Electric Truck Battery 103.4kWh UL Certificated For Heavy Truck,Logistic Truck

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : wooden package Delivery Time : 30 working days after payment
Supply Ability : 50units / week
Place of Origin: China Brand Name: Soundon
Certification: CE, MSDS, ROHS,UL Model Number: SD-EV-394.2-262.5

Detail Information

Voltage Range: 394.2V Total Energy: 88.15kWh
Maximum Continuous Charging Current: ≤262.5A Waterproof Grade Of Battery Box: IP66
Cooling Method: Natural Cooling Model: SD-EV-394.2-262.5

Product Description

88.15kWh Electric Truck Battery With High Current Rating And High Energy Density For Heavy Truck





Content Parameter
Voltage 324V---453.6V(335.8V)
Energy(KWh)23±2℃,1/3C 103.4kWh
Capacity(Ah)23±2℃,1/3C 262.5Ah
Cell SEPNi8688190P-17.5Ah
Configuration 15P108S
Recommended ambient temperature range(℃) Discharge-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended 5%~95%
Storage temperature

-20~25℃(3-6months,50%SOC)

-20~45℃(1-3months,50%SOC)

-20~60℃(less than 1 month,50%SOC)

Maximum Continuous Discharge Current ≤262.5A
Maximum Continuous Charging Current ≤262.5A
Insulation resistance factory test value(Ω) ≥20MΩ
Waterproof Grade of Battery Box IP66
Cooling mode Natural cooling


Battery Model



Cell Model 8688190-17.5Ah
Model Type 5P1S
Model Size (H*W*T) 242× 97× 45.3(mm)

Rated Capacity Module



87.5Ah

Nominal Voltage Module



3.65V
Module Weight ≈1.51Kg
The Module Of Energy Density 211.5Wh/kg



Battery Module picture



394.2V Electric Truck Battery 103.4kWh UL Certificated For Heavy Truck,Logistic Truck


Battery cell  parameters



Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)



Charging end of voltage :4.2V



Standard charging and discharging current :0.5C



max continuous charge and discharge current :1C



max pluse charging current :1.5C(15-45 degree) < 30S



max pluse discharging current :3C (15-45 degree) < 30S



Working temperature : Charging:-10~45 degree



Discharging :-20~55 degree





Battery cell with UL certificate
