Place of Origin:
Chin
Brand Name:
Soundon New Energy
Certification:
UN38.3,CE
Model Number:
EV-SD-43.8128
product description

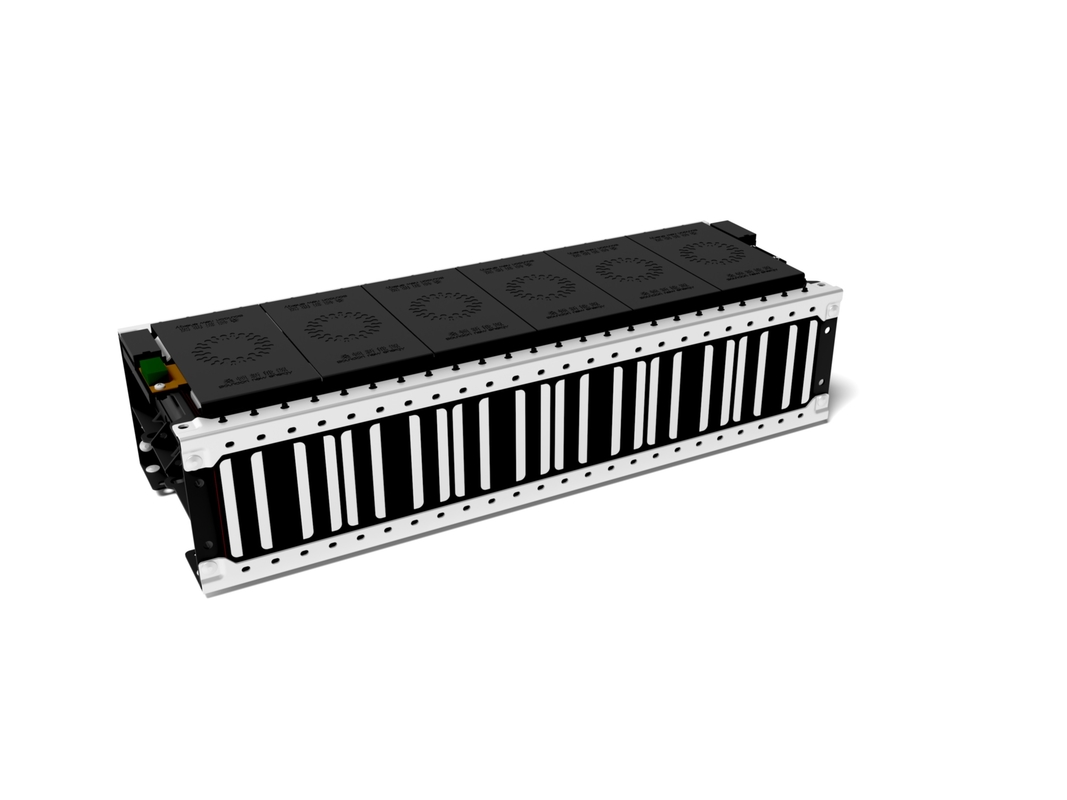

High Energy Density 43.8V128Ah NMC Battery electric truck battery For Car ,Van ,Streetscooter
Battery cell Specification:
|
Item |
Specification |
| Nominal Capacity | 32Ah |
| Nominal Voltage | 3.65V |
|
Charge Ending Voltage
|
4.2 V |
| Impedance | ≤1.5 mΩ |
|
Cell Weight (Not include PCB) |
545±20g |
|
Item
|
Specification
|
|
|
Nominal Capacity
|
128Ah ,0.5 C discharging(25±2ºC) | |
|
Typical Capacity
|
130Ah ,0.5 C discharging(25±2ºC) | |
|
Minimum Capacity
|
128Ah ,0.5 C discharging(25±2ºC) | |
| Nominal Voltage | 43.8V | |
|
Charge Ending Voltage |
50.4V | |
|
Discharge Ending Voltage |
0ºC≤T(Temperature)≤55ºC 0ºC≤T≤55ºC |
36V |
|
-20ºC≤T(Temperature)≤0ºC -20ºC≤T≤0ºC |
28.8V | |
|
Standard Charging Method |
25±2ºC 0.5C constant current charge to 58.8V, then constant voltage 58.8V charge till charged current declines to ≤ 0.05C | |
|
Max. Constant Charging Current |
1C (15ºC~45ºC) | |
|
Max. Pulse Charging Current |
1.5C (15ºC~45ºC)≤30S | |
|
Standard Discharging Current |
25±2ºC 0.5C constant current discharge to 48.0V |
|
|
Max. Constant Discharging Current
|
1C | |
|
Max. Pulse Discharging Current |
3C (15ºC~45ºC)≤30S | |
|
Operating environment |
Charging:-10ºC~55ºC, max.90%RH Discharging: -20ºC~55ºC, max.90%RH |
|
|
Module Weight |
31.93±0.6 kg | |
|
Energy Density |
175.5Wh/kg | |
An Expert Maker of LiFePO4 and NCM battery for Electric vehicle and Energy Storage system
Soundon New Energy established in 2011, which is invested by Sound Global (stock :HK00967) and stock jointed by Sound Environment (SZ000826). With a registered capital of $392 million , is an enterprise engage in technology innovation, product design and marketing of battery cathode materials, high capacity lithium ion batteries .
Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016
Our advantage

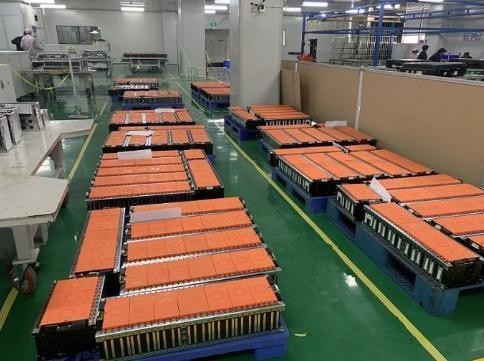

Soundon industrial park covers an area of 2 million square meters, with ten automatic production lines, all production line applied advanced equipment and famous brand facilities (most of R&D and QC instrument were imported from the US, Japan and UK) which are manned by 1,000 workers.
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
R&D sources
The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.
We have created a well-organized environment of research and development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery
QC introduction
our company Obtained ISO9001-2015 ,ISO 14001 and ISO/TS16949 certification, applied the financial ERP systems and the modern administration management system and passed all kinds of the quality standards.
Our factory has a complete Q.A. & Q.C.system. We own authorized sets of analyzing instruments with high efficiency and high sensitivity.
Everyone at Super factory strives to meet or exceed the expectations of customers, and aims to constantly improve both quality and service of our product, to achieve much higher level on different aspects of company in the long run.
We also have framed a well defined quality management system under the supervision of quality inspectors.
The Quality System consists of 5 main parts below:
1. Quality Training
2. Incoming Quality Control
3. In-process Quality Control
4. Reliability Testing
5. Outgoing Quality Control
Soundon have a full-scale produce qualification such as ISO 9000:2015, ISO 140001:2015, ISO/TS 16949 and OHSA18001-2007 certification. Mostly of lithium battery products gain the national and safety explosion-proof and export permit. like CE, CB, UN38.3 and RoHS ,R100 international certification, Soundon aims to be your long-term partner, ensures product quality, on-time delivery, competitive price and user's equity!
Why choose us?
1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.Send your inquiry directly to us
