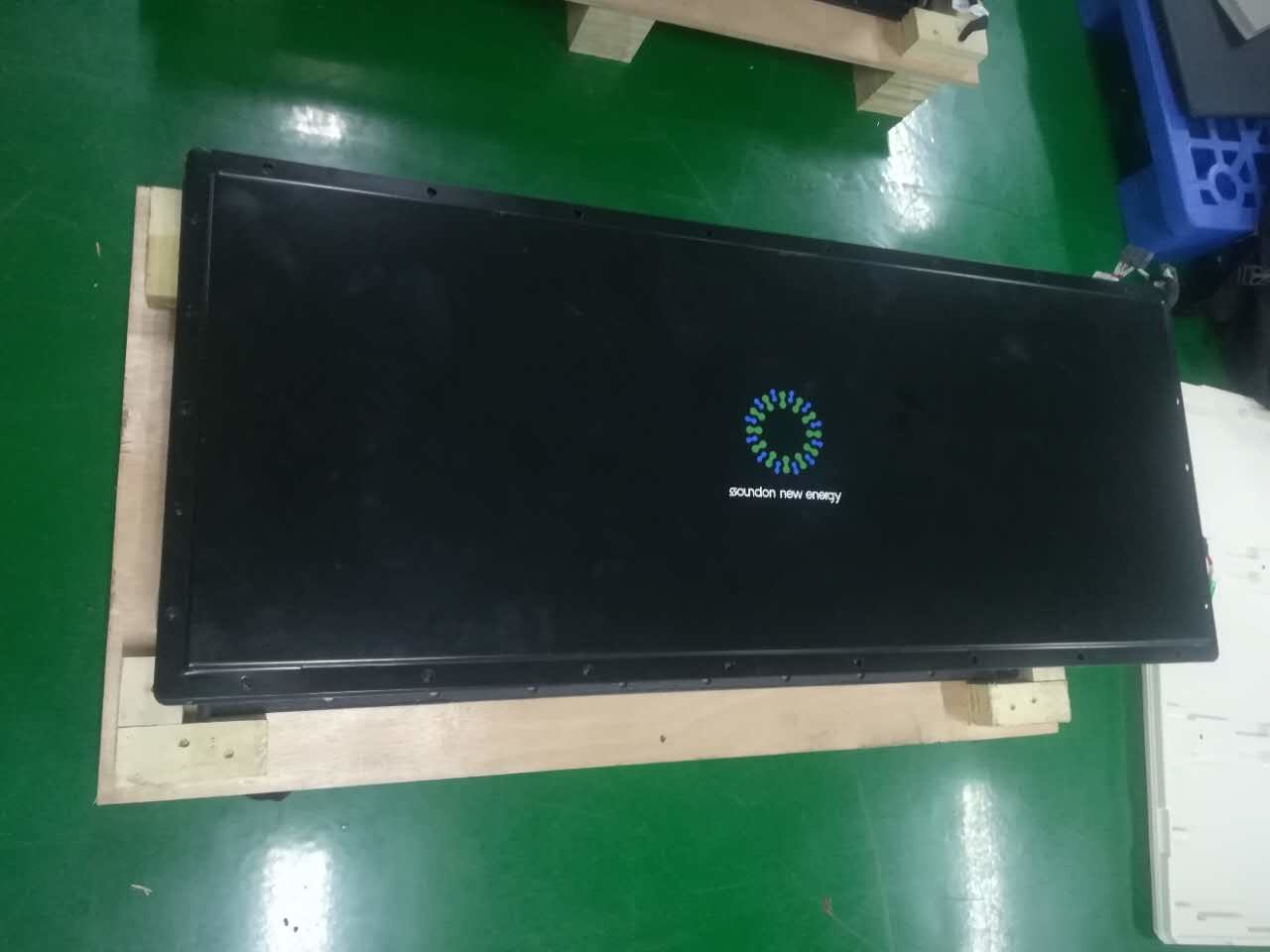

Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful

Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful

    • Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful
    • Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful
    • Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful
  • Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful

    Product Details:

    Place of Origin: China
    Brand Name: SOUNDON
    Certification: UN38.3,UL ,CE ,ROHS
    Model Number: SD-EV-008-115480-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiable
    Packaging Details: Wooden package
    Delivery Time: sample within 7-10days ,mass production around 20-25days
    Supply Ability: 800 units / day
    Contact Now
    Detailed Product Description
    Voltage: 115V Capacity: 480Ah
    Dimension: 950*420*330mm Working Voltage: 96~134V DC
    Battery Cell Configuration: 32P32S Max. Charging Current: 125A
    Max. Instance Discharging Current: 500A



    Electric Car NCM material prismatic cells battery 48V 15Ah Powerful



    Specifications:



    Project Parameter
    Voltage Range 96V---134V(115.2V Platform)
    Battery System Whole Energy (KWH)
    23±2℃, 1/3C
    Rated: 55.2kWh
    Battery System Whole Capacity(Ah)
    23±2℃, 1/3C
    Rated: 480Ah
    Battery Cell Configuration 32P32S
    Battery system Working Temperature Discharge -20~50℃, Charge 0~45℃
    Battery system Surrounding environment relative humidity 5%~95%
    Battery system storage Temperature -20~25℃(3-6 Month, 50%SOC)
    -20~45℃(1-3 Month, 50%SOC)
    -20~60℃(≤1 Month, 50%SOC)
    Battery system Max. charging current 125A
    Battery system Max. Instance discharging current 500A
    Battery system standard discharging current 200A
    Battery system instant discharging current (Max.) 400A
    Battery system Max. Continuous discharging current 300A
    Insulation Resistance Testing( Ω) ≥20MΩ





    Competitive Advantages:

    1. Good performance under different temperature.
    2. Fast charging can be accepted. It can be charged to 80% within 20 minutes and charged full with 2-3h.
    3. Stable discharge voltage performance, good rate performance, perfect safety performance.
    4. Environmentally friendly, without any toxic material.
    5. Advanced automatic production and inspection equipments.
    6. Provide customization and global after-sales service.



    Electric Car NCM Material Prismatic Cells Battery 48V 15Ah 115V Powerful
