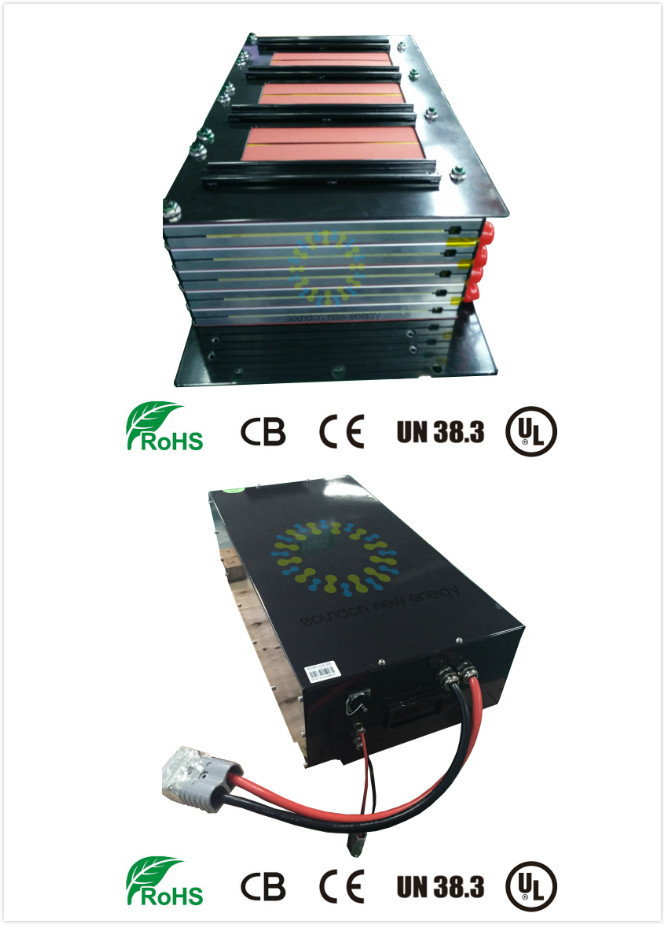

Lithium Rechargeable Battery Pack , Electric Bicycle 72v Lithium Battery Pack

Lithium Rechargeable Battery Pack , Electric Bicycle 72v Lithium Battery Pack

Lithium Rechargeable Battery Pack  , Electric Bicycle 72v Lithium Battery Pack

Product Details:

Place of Origin: China
Brand Name: Soundon
Certification: UN38.3,UL ,CB ROSH
Model Number: SD-EV -72V

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 2 PCS / wooden package
Delivery Time: 20-25 days
Supply Ability: 100 pcs / day
Contact Now
Detailed Product Description
Voltage ,capacity: 72V 60Ah Battery Type: Lifepo4 Prismatic Battery Cells
Instantaneous Charge Current: 3C Instantaneous Discharge Current: 5C
Dimension: 650*340*212mm Battery Case: Black Battery Case
Weight: ≤50Kgs Protection Level: IP56

Longer Storage Life Lithium Polymer Battery Pack 72V Lifepo4 Three Wheel Motorcycles ,Golf carts



Features:



1.lifepo4 battery with Long cycle life and good safety

2. with unique technology to keep Good consistency of the battery pack

3. can tolerate the Wide range of operation temperature

4. Stable discharge voltage performance, good rate performance

5. Environmentally-friendly product, non-toxic, production under standards of ROHS

6. With a advanced BMS, monitoring the state of batteries and protecting it.



BMS function:



A BMS may protect its battery by preventing it from operating outside its safe operating area, such as:

  1. Over-current
  2. Over-voltage (during charging)
  3. Under-voltage (during discharging), especially important for Li-ion cells
  4. Over-temperature
  5. Under-temperature
  6. Ground fault or leakage current detection (system monitoring that the high voltage battery is electrically disconnected from any conductive object touchable to use like vehicle body)



The BMS may prevent operation outside the battery's safe operating area by:

  1. Including an internal switch (such as a relay or solid state device) which is opened if the battery is operated outside its safe operating area
  2. Requesting the devices to which the battery is connected to reduce or even terminate using the battery.
  3. Actively controlling the environment, such as through heaters, fans, air conditioning or liquid cooling.

Battery pack specification

    Max rated parameters



Charging voltage……………….. ………… 87.6V

Charging current………………….. .. ………40A

Rated voltage of battery……………….. ……76.8V

Discharging current……………….. …………100A

Voltage between inputs……………….. .. .. ..  2.50Vto 3.65V

Temperature range……………………………-20℃to 45℃

Storage temperature……………….. ………… 20℃to 30℃



     1. The battery pack box is using the 1.5mm high strength cold-roll steel to made of, the box surface with electrophoresis treatment,

    2. Waterproof and Dustproof grade : IP65,

    3.the total weight of battery pack system ≤50Kg

    4. overall size around 650*340*212mm



 Light  Electric vehicle battery pack list





Lithium Rechargeable Battery Pack  , Electric Bicycle 72v Lithium Battery Pack
