|Place of Origin:||China|
|Certification:||ROHS ,MSDS ,TLC certification,CE|
|Minimum Order Quantity:||1|
|Packaging Details:||Inner plastic material package ,wooded packaging outside|
|Delivery Time:||20-25 days|
|Payment Terms:||L/C at sight , T/T|
|Supply Ability:||300 pcs /day|
|Standard Voltage:||48V||Standard Capacity:||50Ah|
|Dimension:||500 X 430 X 280mm||Configuration:||Cell 3.2V50Ah ,16S Single Battery In Series|

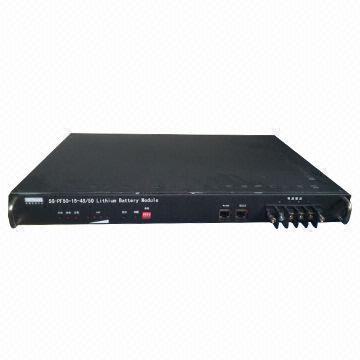

1. Lithium battery module: standby power with long lifespan, no memory effect Big capacity power storage batteries for solar/wind energy saving and collecting, made with LiFePO4 battery cell
2. Power supply With built-in switching power supply, the power supply system can provide 48V DC to the telecom equipment after connected with commercial power
3. Power storage batteries can provide power to make sure the DC system works well without interruption.
4. Power supply with intelligent design that can cut off the power of battery in two times
5. Secondary disconnection function of the power supply can protect the batteries completely
High-energy density in volume (Wh/L) and weight (Wh/kg) Safe, environment-friendly and maintenance-free
Details and procedures like communication adjustment and cable preparation will be done, customers will enjoy using the simplest whole power system We can make special design base on customers' requirements, such as special dimension, very big capacity and long lifespan
working voltage: 48V DC
Rated output working current: 100A
Outline dimensions: 500 x 430 x 280mm
Gross weight: 58kg
Intelligent BMS are mainly with below functions :
It has six LED indicators, four green light for power indicator indicates the current battery SOC, 1 red light fault indicators for alarms, fault indication protection, and a green light to indicate battery operation group standby charge, discharge status.
When the voltage drops below the minimum section dormant monomer voltage, continuous no discharge, no communication, the system goes to sleep, to minimize power consumption.
You can set the sleep voltage point through the PC.
RS485 interface via parallel communication. It has a DIP switch setting address for parallel communication.
After parallel data by a parallel version can cycle PC monitor battery pack.
Can be isolated and communicate with a computer through RS485 or host, the collected information is uploaded and saved
PC Control function
PC has a friendly interface, you can easily overvoltage, undervoltage, through the PC, protection parameters over current, over-temperature, under-temperature, short circuit, balance, sleep, capacity, storage and other functional parameters and various alarm parameters set
small-capacity access network equipment, remote switching office,
mobile communications equipment
backup power transmission equipment,
satellite earth stations and microwave communications equipment
