48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs

Minimum Order Quantity : 1 Price : Negotiation
Packaging Details : Inner plastic material package ,wooded packaging outside Delivery Time : 20-25 days
Payment Terms : L/C at sight , T/T Supply Ability : 300 pcs /day
Place of Origin: China Brand Name: Soundon
Certification: ROHS ,MSDS ,TLC certification,CE Model Number: SD-ES-4850-001

Detail Information

Standard Voltage: 48V Standard Capacity: 50Ah
Peak Current Duration: 3S Configuration: Cell 3.2V50Ah ,16S Single Battery In Series
Weigh: 58kg Warranty: 5 Years
High Light:

electric bicycle lithium battery

,

electric bicycle battery pack

Product Description

48V 50Ah Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs



Specification :



Electrical Specification
Nominal Voltage 48V
Maximum Voltage 56V
Minimum Voltage 42V
Continuous current 40A
Peak Current 60A
Peak current duration 3S
Max charge current 40A
Capacity range 40 to 60AH
Life Cycle 4000 cycles @ 80% DOD

Protections and Features
Protections Over voltage, Under voltage,
Over Current, Short circuit,
Over Temperature, Low temperature,
Deep-discharge
Features Pre-charge, Passive balancing,
Parallel operation

Communication
 Communication CAN, RS232/485
Optional Communication MODBUS RTU

Environmental Specifications
Temperature Max 55 degree C
Temperature Min -10 degree C
RH 90%





1. Telecom back up power System Working Way :





1.Back-up power system consists of a dedicated plug into the mains 220V circuit, the system built by the post-processing the output rectifier power module-48V DC power grid under normal circumstances.



2. the system needs to provide the rectifier power module the power while charging the battery system toback up power  grid in case of power failure, provided by back up power series battery power systems, DC power systems to ensure proper operation, uninterrupted power supply function.



3.Power with rechargeable function, when the battery voltage is too low battery power management module BMS cut off the power supply circuit to protect the battery life.



2. Software and Communication Module



RS232 communication



Cell system using the RS232 interface to communicate with up system, the battery system transmission parameters, and alarm status information, protection information, and other parameter settings of the battery module, RS232 communication rate of 1200bps for general use.

Only when the DIP switch is set to Pack1 (Master Pack) mode, RS232 communication module to be

effective.





RS485 Communication RS485



When the battery pack in parallel, main battery pack can communicate via RS485 interface,which saw main battery and other battery pack information from PC.


Battery pack good performance

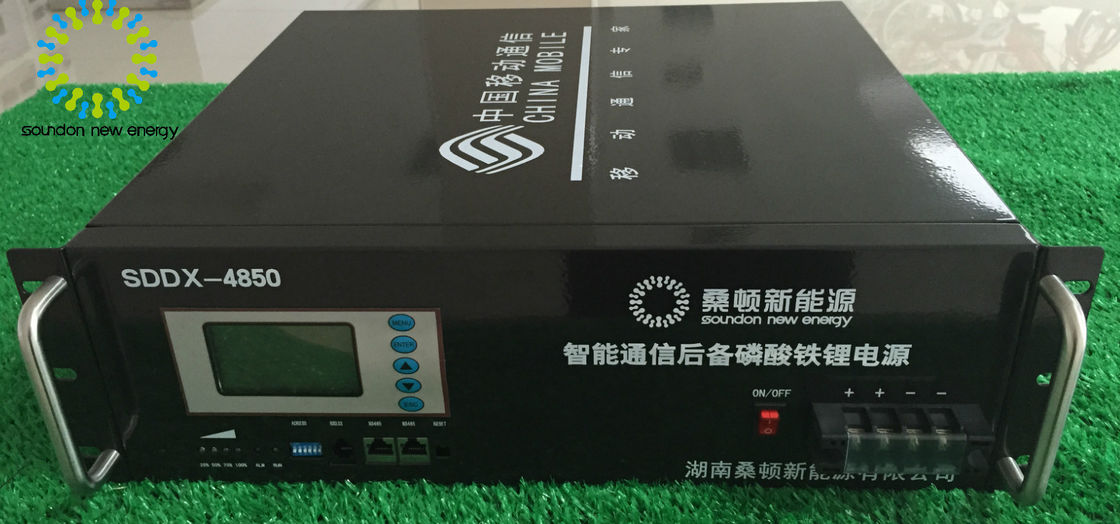

48V 50Ah  Home Storage Battery , CAN Communication Charging Lifepo4 Batteries Packs 0
