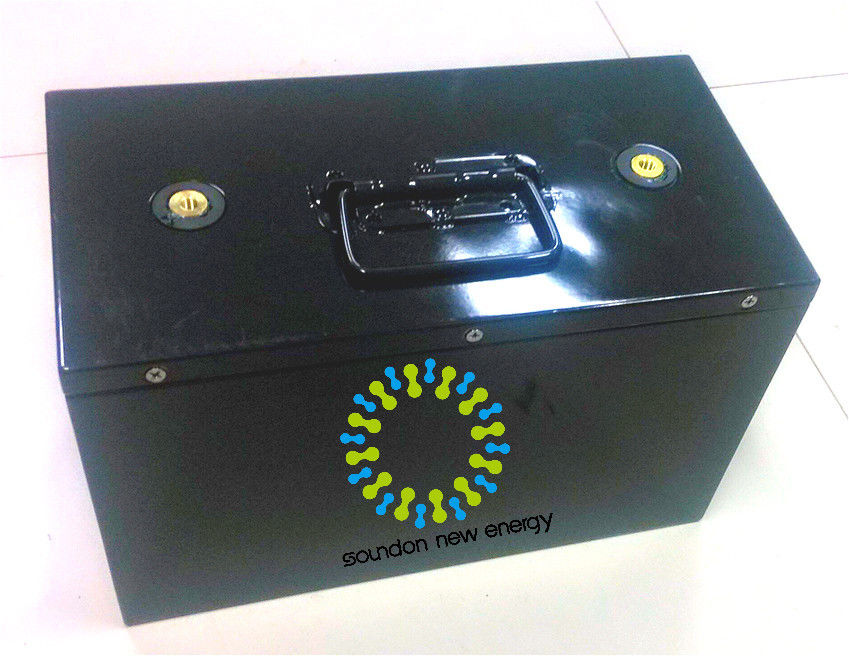

Lithium Iron Phosphate Deep Cycle Battery , High Power 12v Lithium Deep Cycle Battery

Minimum Order Quantity : 1 Price : Negotiation
Packaging Details : carton box for inner package , wooden box for outer package Delivery Time : 7-10 days for sample , 20-25days for mass
Supply Ability : 500 Units / week
Place of Origin: China Brand Name: Soundon
Certification: ROHS ,MSDS,CE ,UN38.3 Model Number: SDDC-ES-12200

Detail Information

Capacity ,voltage: 12V200AH Weight: <100Kg

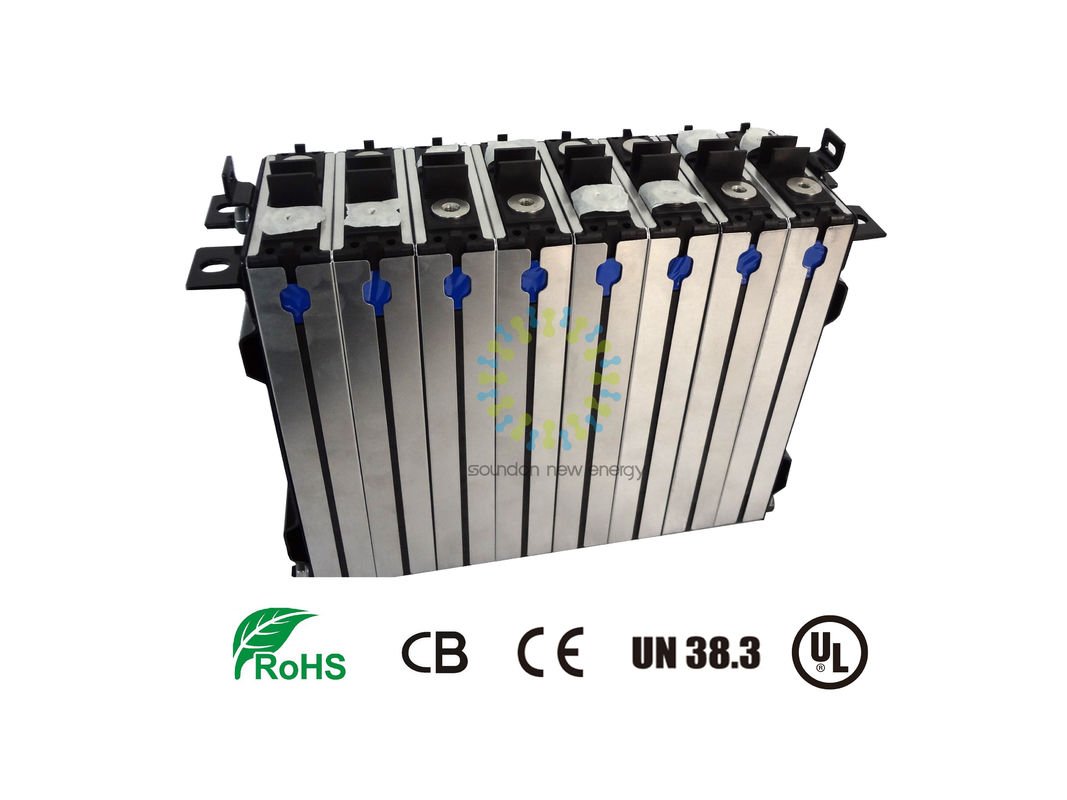

Components: Lifepo4 Prismatic Cells Case Material: Hard Steel Case With IP 65
Warranty: 2years Application: Telecom Power, Backup Power,solar Energy System

Product Description

High Power 12V200Ah Lifepo4 Lithium Battery Used For Telecom Base Station ,Medical Equipment



Appliction :



Electric vehicles, electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting



Specification :



Nominal Voltage :12.8V
Nominal Capacity : 200Ah
Energy : 2560Wh

dimension :522*240*224mm (20.55"*9.45"*8.81")
Weight (lbs./kg.) :29.6kg

battery material : Lithium Iron Phosphate (LiFePO4) Battery
Protocol (optional) SMBus/RS485/RS232


Internal Resistance :≤20mΩ
Cycle Life : >2000 cycles @1C 100%DOD
Months Self Discharge :<3%
Efficiency of Charge : 100% @0.5C
Efficiency of Discharge : 96~99% @1C



Charge and discharge condition :


Charge Voltage : 14.6±0.2V
Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charger Current : 60A
Max. Charge Current :120A
Charge Cut-off Voltage : 15.6V±0.2V
Continuous Current : 120A
Charge Temperature :
Max. Pulse Current : 140A(<3s)


Discharge Temperature:
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity


Discharge Cut-off Voltage :8V
Storage Temperature : 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance :IP56

Advantage :


Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.


Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.


Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.


Wider Temperature Range: -20 C~60 C.


Superior Safety: Lithium Iron Phosphate chemistry eliminates , the risk of explosion or combustion due to high impact, overcharging or short circuit situation.


Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.




Energy Storage battery list :



Lithium Iron Phosphate Deep Cycle Battery , High Power 12v Lithium Deep Cycle Battery


Application :

Energy Storage: solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc
