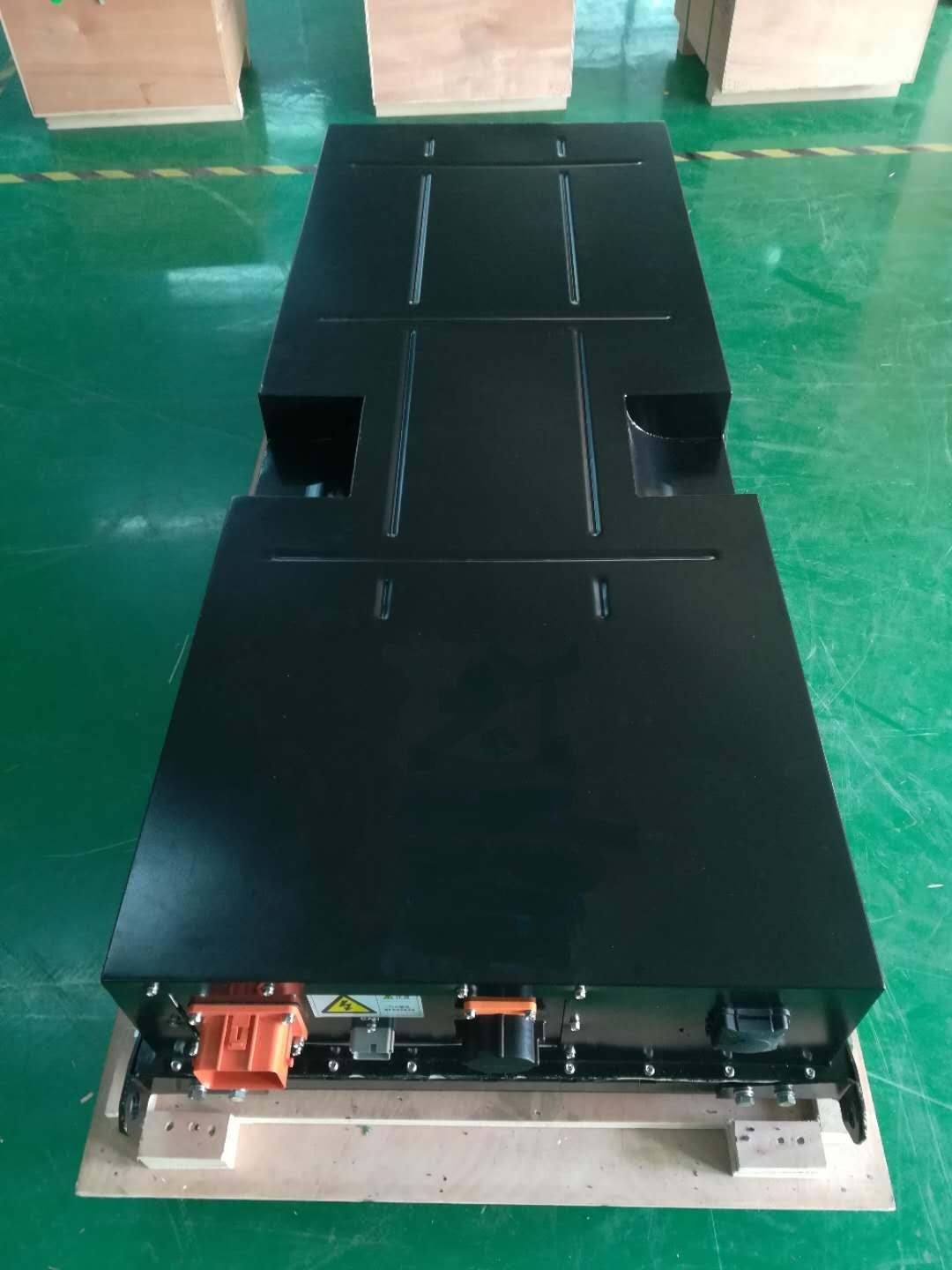

345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle

345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle

    • 345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle
    • 345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle
  • 345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle

    Product Details:

    Place of Origin: China
    Brand Name: Soundon
    Certification: CE, MSDS, ROSH
    Model Number: SD-EV-345.6V136Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: wooden package
    Delivery Time: 30 working days after payment
    Supply Ability: 100 units / week
    Contact Now
    Detailed Product Description
    Working Voltage Range: 288V~403V Capacity: 136Ah
    Total Power: 47kWh Protection Level: IP67
    Battery Material: NCM Prismatic Cells Intantaneous Charge Current: 150A
    Instantaneous Discharge Current: 300A Application: Electric Truck ,electric Pick Up Vehicle,light Truck

    345.6V136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck ,Logistic Vehicle





    Battery pack Specifications:



    Battery pack capacity :388V136Ah



    Voltage range :288-403V



    Battery system whole energy  47Kwh



    Battery cell capacity :3.6V17Ah



    Steady discharging current :170A



    Steady discharge overcurrent(A) :300A



    Transient charging current (A) : 150A



    Transient discharging current (A) :350A



    Battery system on Vehicle Waterproof class :IP67



    Cooling system :Air cool



    the battery cell we used in battery system datas :



    345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle

    Performance: 1C Charge / Discharge 2500 cycles, Capacity ratio ≥80%



    345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle



    operating environmental :charging :-10℃-55℃;  Discharging: -20℃-55℃,



    345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle





    345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle



    EV battery cell model list



    Model Voltage (V) Capacity (Ah) Impedance(mΩ) Dimention
    Length (mm) Width (mm) Thickness (mm)
    SEPNi8688190P-17Ah 3.65 17 ≤3.5 194±2 91±2 8.4±0.4
    SEPNi8688190P -13.5Ah 3.65 13.5 ≤3.0 194±2 91±2 8.3±0.4
    SEPNi11100302P-42Ah 3.65 40 ≤2.5 301±2 99±2 10.9±0.4
    SEPNi11164227P-45Ah 3.65 45 ≤2.5 226±2 163±2 10.8±0.4
    SEPNi11217127P-32Ah 3.65 32 ≤2.5 125±2 215±2 11.1±0.4
    SEPNi54190140P-10Ah 3.65 10 ≤1.5 141±2 191±2 5.2±0.3
    SEPFE12212268P-50Ah 3.2 50 ≤0.8 10.9 212 268.5


    The latest Soundon new energy industrial park



    345.6V 136Ah High Energy Electric Vehicle Batteries For Electric Pick Up Truck , Logistic Vehicle



     Soundon New Energy Technology Co., Ltd. was established in 2011,located in Xiangtan city and is an innovative new energy company under Sound Group.



    The business scope covers lithium battery material precursors, cathode materials, batteries cell, battery management systems, battery system integration, battery cloud platform R&D. , Internet +, battery recycling, battery secondary use, waste battery regeneration technology and other fields, which formed a complete lithium ecological chain.



    The company's products are widely used in pure electric passenger cars, pure electric commercial vehicles, pure electric special vehicles, smart grids, wind photovoltaic energy storage, large UPS, base stations, high-end electric tools and other fields .



    Soundon New Energy industry park cover an area 2million square meters ,has the ability of production 9 Gwh high capacity li-ion battery every year.At the same time, it is the first to realize quantity production of NCM pounch cell 260wh/kg .
