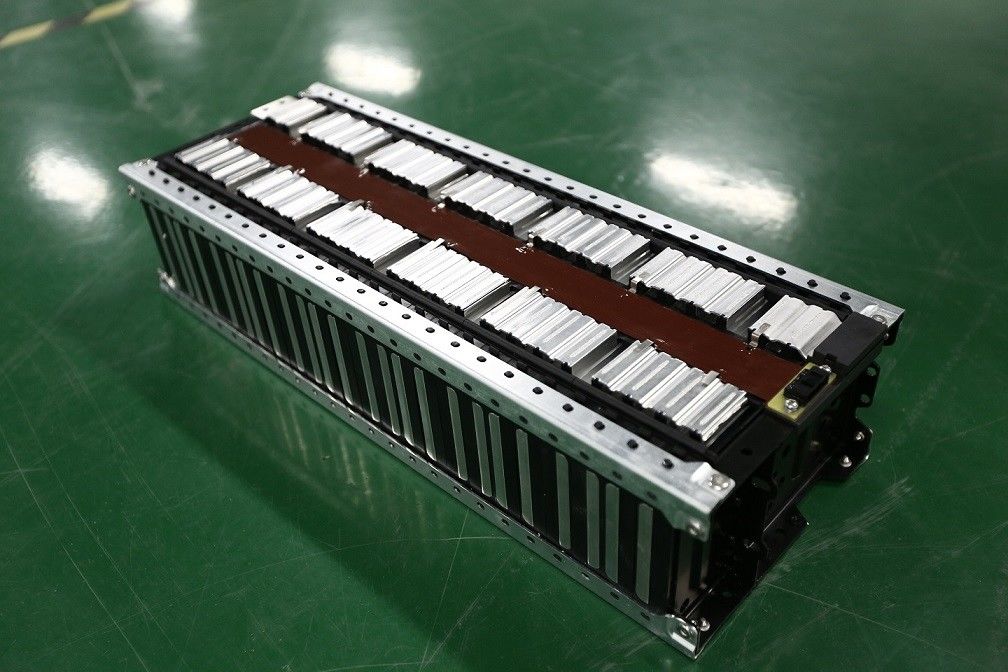

VDA Standard Battery Module Electric Vehicle Batteries 36.5V 128Ah Safety

Minimum Order Quantity : 5 Price : Negotiation
Packaging Details : carton box package Delivery Time : 25-30days
Supply Ability : 1000/day
Place of Origin: China Brand Name: Soundon
Certification: CE,ROHS,MSDS,CB,UL Model Number: EV-014-36.5V/128Ah

Detail Information

Battery Module: 36.5V128AH Dimension: 523*227*149mm
Energy Density: 175 Wh/kg Max. Pulse Discharging Current: 3C
Battery Cell: SEPNi11217127-32Ah Battery Cell Energy Density: 220 Wh/kg
Application: E-trucks, Fork Lifts ,house Storage Power,off-grid Solar Energy Battery Configuration: 4P10S

Product Description



VDA standard battery module 36.5V128Ah Electric Vehicle Batteries with good safety



VDA Battery Module specification:



Capacity



128Ah ,0.5 C discharging(25±2℃)

Minimum Capacity



128Ah ,0.5 C discharging(25±2℃)
Nominal Voltage 29.2V

Charge Ending Voltage

33.6V

Discharge Ending Voltage

0℃≤T(Temperature)≤55℃

0℃≤T≤55℃

30V

-20℃≤T(Temperature)≤0℃

-20℃≤T≤0℃

24V

Standard Charging Method

25±2℃ 0.5C constant current charge to 33.6V, then constant voltage 33.6V charge till charged current declines to ≤ 0.05C

Max. Constant Charging Current

1C (15℃~45℃)

Max. Pulse Charging Current

1.5C (15℃~45℃)≤30S

Standard Discharging Current

25±2℃

0.5C constant current discharge to 48.0V

Max. Constant Discharging Current



1C

Max. Pulse Discharging Current

3C (15℃~45℃)≤30S

Operating environment

Charging:-10℃~55℃, max.90%RH

Discharging: -20℃~55℃, max.90%RH

Weight

26kg

Energy Density

175 Wh/kg




Battery cell sepcificaiton :



Capacity 32Ah
Voltage 3.6V
Charge cut-off voltage 4.20V±0.03V
Impedance ≤ 2.5 mΩ
Standard charge and discharge current 0.5C
max constant charge and discharge current  1C
mas pluse charging current  1.5C
mas pluse discharging current 3C
Operating temperature Charging :-10~45℃
Discharging :-20~55℃
Dimension 11.5*126*216mm



Superiority:


Using high energy density NCM materials  up to 220wh/kg .



 Battery cell  is special design for electric vehicle which adopt the VDA standard size to match any model battery pack



Battery cell can  configurate to any battery module can suit for car batteries,like below similar module:36.5V128Ah ,43.8v128Ah, 51.1V128AH ,58.4V64Ah



Passed the international certificate :UN38.3,MSDS,CE



Battery package are comply with international  export transpotation rules UN38.3 and dangerous package certificate.



Battery cell MODE SEPNi11217127P
Battery cell capacity Ah 32Ah
Configuration 4P8S 4P10S 4P12S 4P14S 2P16S
Dimension mm
(H*W*T)
437*227*149 523*227*149 618*227*149 737*227*149 437*227*149
Module Rated Capacity Ah/Wh 128AH 128AH 128AH 128 64
Module Rated Voltage V 29.2V 36.5V 43.8V 51.1V 58.4V
Module Weight Kg 22kg 26.6kg 31.9kg 37.5Kg 22Kg
Module Weight Wh/Kg 170 175.6 175.7 174 170





Battery module  production line :

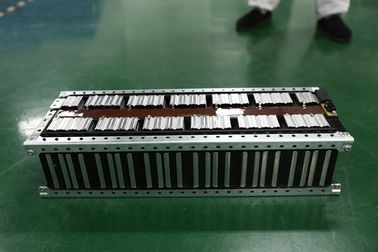

VDA Standard Battery Module Electric Vehicle Batteries 36.5V 128Ah Safety
