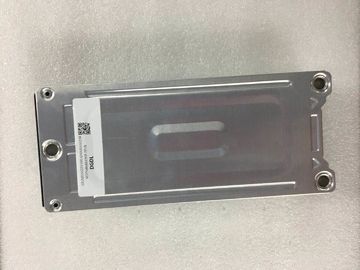

3.6V 87.5 Ah High Density NCM Battery For Electric Vehicle , Energy Storage Systems

3.6V 87.5 Ah High Density NCM Battery For Electric Vehicle , Energy Storage Systems

car electric battery

electric motor battery

Place of Origin:

China

Brand Name:

Soundon

Certification:

CE,ROHS,MSDS,UL

Model Number:

SD-EV-3.6-87.5

Contact Us
Request A Quote
Product Details
Battery Module:
3.2V87.5AH
Dimension:
232.5×97×45.3
Case Material:
Aluminum Case
Instantaneous Discharge Current:
3C
Battery Cell:
SEPNi8688190P-17.5Ah
Battery Type:
Pouch NCM Battery
Application:
E-trucks, Fork Lifts ,house Storage Power,off-grid Solar Energy
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Negotiation
Packaging Details
carton box package
Delivery Time
20000 pcs/ day
Product Description



3.6V 87.5 Ah High Density NCM Battery With UL ,UN38.3,CE For Electric Vehicle,Energy Storage Systems

Specifications:



Battery Cell :



Voltage: 3.2V

Capacity: 17.5Ah

Charging end voltage: 4.2V

Discharging end voltage: 2.75V

Standard charging current: 0.2C (4A)

Standard discharging current: 0.5C (10A)

Maximum constant discharging current: 1.0C (20.0A)

Maximum instantaneous high load current: 3.0C (60.0A)

  • Dimensions:
  • Thickness: 8.6mm
  • Width: 8.8mm
  • Length: 190mm
  • Weight: ≤500g
  • Self resistance: ≤2mΩ
  • Recycle life: 1000 times at 0.5C charging/discharging
  • Can be made for many kinds of batteries, final shapes can be customized

Battery Module :

Voltage: 3.6V
Capacity: 87.5Ah
Configuration: 5PCS cells in parallel
Dimension: (H)232.5*(W)97*(T)45.3mm
Weight: 1.61kgs
Lifespan: more than 2000cycles
Max plus charging current: 1.5C
Max plus discharging current: 3C
Charging temperature range: 0 to 45°C
Discharge temperature range: -20 to 60°C
Storage temperature range: -10 to 45°C
Standard BMS (over-charge, over-discharge, over-current, balance and high-temperature protections)
Smart BMS (standard BMS functions, scale, communication, sleep, encode)



Electric Vehicles Li polymer battery pack list :



Module Voltage Capacity Application Battery cells Type
EV-72250 72 250 electric car NCM
EV-108200 108 200 Electric passenger car NCM
EV-314100 313.2V 100Ah Electric car NCM
EV-310125 309.6V 125Ah Electric pure car NCM
EV-38850 388.8 52 Electric cleaning vehicle NCM
EV--367200 367.2 200 Electric business bus NCM
EV--324100 324 100 Electric Logistic Vehicle NCM
EV--108325 108 325 Electric transport Vehicle NCM





Advantage :



(1) Output with high efficiency: standard discharge current is 0.5C-0.8C , instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 60°C temperature. The battery structure is safe and good.
(3) Good performance under low temperature. discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under-20°C.
(4) Good safety performance: when the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell (80% DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h



APPLICATION :



Electric vehicle :e-cars, e-buses, e-trucks, fork lifts, e-scooters  e- boat, Off-highway Vehicles

Power and Storage applications:house storage power, digital ,off-grid solar energy ,wind energy storage  , Telecom based station and backup power supply


3.6V 87.5 Ah High Density NCM Battery For Electric Vehicle , Energy Storage Systems 0
