Place of Origin:
China
Brand Name:
Soundon
Certification:
CE, MSDS, ROHS,UL
Model Number:
SD-EV-353.8-262.5

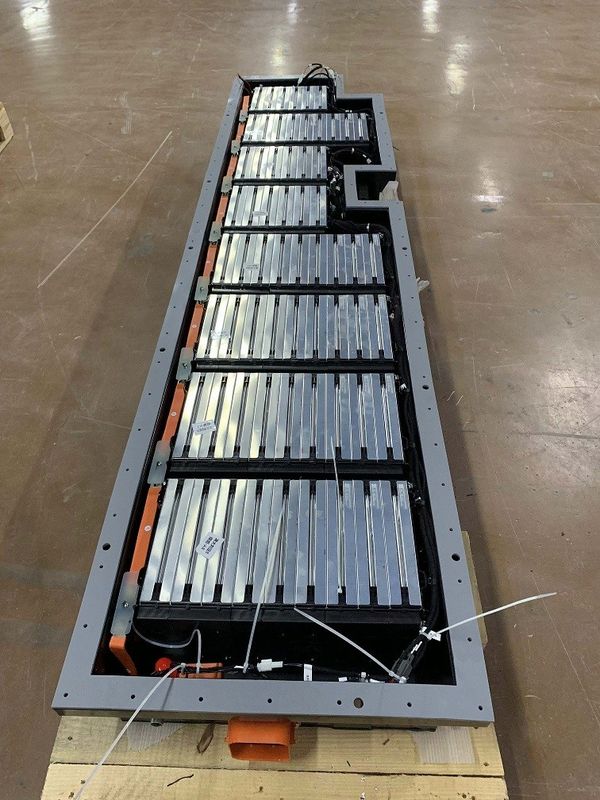

88.15kWh Electric Truck Battery With High Current Rating And High Energy Density For Heavy Truck
| Content | Parameter |
| Voltage | 276V---386.4V(335.8V) |
| Energy(KWh)23±2℃,1/3C | 88.15kWh |
| Capacity(Ah)23±2℃,1/3C | 262.5Ah |
| Cell | SEPNi8688190P-17.5Ah |
| Configuration | 15P92S |
| Recommended ambient temperature range(℃) | Discharge-20~55℃,Charge 0~55℃ |
| Environmental Relative Humidity Recommended | 5%~95% |
| Storage temperature |
-20～25℃(3-6months,50%SOC) -20～45℃(1-3months,50%SOC) -20～60℃(less than 1 month,50%SOC) |
| Maximum Continuous Discharge Current | ≤262.5A |
| Maximum Continuous Charging Current | ≤262.5A |
| Insulation resistance factory test value(Ω) | ≥20MΩ |
| Waterproof Grade of Battery Box | IP66 |
| Cooling mode | Natural cooling |
Battery Model
| Cell Model | 8688190-17.5Ah |
| Model Type | 5P1S |
| Model Size (H*W*T) | 242× 97× 45.3(mm) |
|
Rated Capacity Module
|
87.5Ah |
|
Nominal Voltage Module
|
3.65V |
| Module Weight | ≈1.51Kg |
| The Module Of Energy Density | 211.5Wh/kg |
Battery cell parameters
Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)
Charging end of voltage :4.2V
Standard charging and discharging current :0.5C
max continuous charge and discharge current :1C
max pluse charging current :1.5C(15-45 degree) < 30S
max pluse discharging current :3C (15-45 degree) < 30S
Working temperature : Charging:-10~45 degree
Discharging :-20~55 degree
