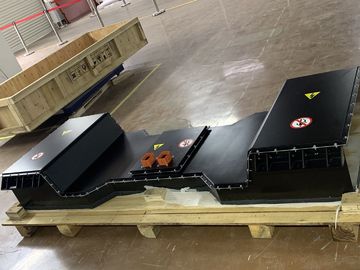

340V 150AH Special Vehicle Battery With 50Ah VDA Module
340V 150AH Special Vehicle Battery With 50Ah VDA Module 340V 150AH Special Vehicle Battery With 50Ah VDA Module
Contact Now

340V 150AH Special Vehicle Battery With 50Ah VDA Module

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : wooden package Delivery Time : 30 working days after payment
Supply Ability : 50units / week
Place of Origin: China Brand Name: Soundon
Certification: CE, MSDS, ROHS, Model Number: SD-EV-019-340V150AH-02

Detail Information
Voltage Range: 340V Capacity: 150Ah
Total Energy: 51kWh VDA Module: 14.8V150AH
Waterproof Grade Of Battery Box: IP66 Cooling Method: Liquid Cooling
Dimension: 1585*1300*289mm
High Light:

150AH Special Vehicle Battery

,

340V Special Vehicle Battery

,

50Ah VDA Module Electric Vehicle Battery

Product Description

340V150AH Special Vehicle Battery With 50Ah VDA Module For Electric Passenger Vehicle



ContentParameter
Voltage340V
Energy(KWh)23±2℃,1/3C51kWh
Capacity(Ah)23±2℃,1/3C150Ah
Cell3.65V50Ah
Configuration3P92S
Recommended ambient temperature range(℃)Discharge-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended5%~95%
Storage temperature

-20～25℃(3-6months,50%SOC)

-20～45℃(1-3months,50%SOC)

-20～60℃(less than 1 month,50%SOC)

Maximum Continuous Discharge voltage404.8
Maximum Continuous Charging voltage276
Insulation resistance factory test value(Ω)≥20MΩ
Waterproof Grade of Battery BoxIP66
Cooling modeLiquid  cooling


14.8V150AH Module speicification



tem



Specification



Nominal Capacity

150Ah ,1C discharging(25±2℃)

152.4Ah,1/3C discharge (25±2℃)

Typical Capacity153Ah ,1 C discharging(25±2℃)
Minimum Capacity150Ah ,1C discharging(25±2℃)
Nominal Voltage14.8V
Charge Ending voltagemax voltage 4.4V
Discharge Ending Voltage0℃≤T(Temperature)≤55℃to single cell min voltage 3.0V
-20℃≤T(Temperature)≤0℃to single cell min voltage 2.4V
Standard Charging Method0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge

Max. Constant Charging Current



1C

Max. Pulse Charging Current



1.5C≤30S
Standard Discharging Current

25±2℃

1/3C constant current discharge to single cell min voltage 3.0V

Max. Constant Discharging Current1C
Max. Pulse Discharging Current3C≤30S
Operating environment

Charging: 0℃~55℃, max.90%RH

Discharging: -20℃~55℃, max.90%RH

Module Weight10.3±0.3 kg
Energy Densityaround215.0Wh/kg



Battery cell  parameters


Product50Ah cell
Cell ModelSEPNi-11100302P(pouched)
Chemicals NCM/graphite
Suitable applications Electric vehicles,hybrid electric vehicle
Nominal capacity50AH
Nominal voltage3.7V
Rated voltage range3.0-4.4V
Working voltage range3.0-4.35V
Working temperature range-30℃～55℃(discharge);-20℃～55℃(Charge)
Storage temperature range-30℃～55℃
Specific energy density～260Wh/kg

 Dimension
(length × width × thickness)/mm

(302max)×(100max)×(11.6±0.2)
Standard SizeSatisfy the size of VDA
Performances  All tested parameters meets the requirements of national mandatory electrical and safety standards of GB/T 31484, GB/T 31485 and GB/T 31486,UN38.3



14.8V150AH Mass Production
