41Kwh High Energy Density Pouch Cell Special Vehicle Battery With International VDA Module For Electric Logistic Van
specification :
| Parameter | ||
| Battery cell | Battery Cell Type | SEPNi11217127P-32Ah |
| Battery Material | NMC | |
| Rate Voltage(V) | 3.65 | |
| Rated Capacity(Ah) | 32 | |
| Dimension(mm) | Length(126±5)×W(216±5)×T(11.5±2.0) | |
| weight(kg) | 0.545±0.015 | |
| BMS | Rated Input Voltage | 6-36V |
| Rated Input Current | 3A | |
| Mounting Position | Battery Pack | |
| Dimension(mm) | Main Plate:286*126*28 ;Slave Plate: 154*126*28 | |
| Weigh(kg) | Main Plate: 0.96 ;Slave Plate: 0.56 | |
| Battery Pack | Type | 321.2V128AH |
| Battery Type | High Energy Density | |

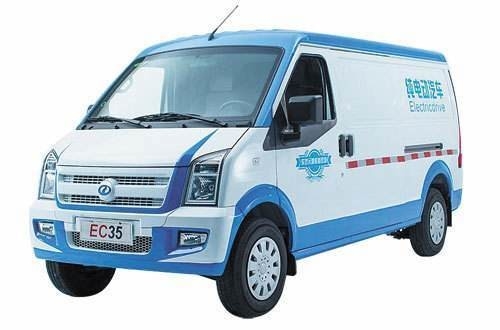

| Application | Electric Logistic Van | |
| Mounting Position | others | |
| Vehicle Weigh(t) | <3.5 | |
| Battery Pack Configuration | 4 P 88 S, Three Boxes | |
| Cooling Method | Natural | |
| Rated Voltage(V) | 321.2 | |
| Rated Capacity(Ah) | 128 | |
| Rated Energy(Wh) | 41113.6 | |
| Charge Termination Voltage(V) | 369.6 | |
| DisCharge Termination Voltage(V) | 264 | |
| Battery Cell Charge Protection Voltage(V) | 4.2 | |
| Battery Cell DisCharge Protection Voltage(V) | 3.0 | |
| Charge Temperature Range(ºC) | -10~55 | |
| DisCharge Temperature Range(ºC) | -20~55 | |
| Max Continue Charge Current (A) | 25ºC: 128 40ºC: 128 50ºC: 64 -20ºC: 0 | |
| Max Continue Discharge Current(A) | 25ºC: 128 40ºC: 128 50ºC: 64 -20ºC: 0 | |

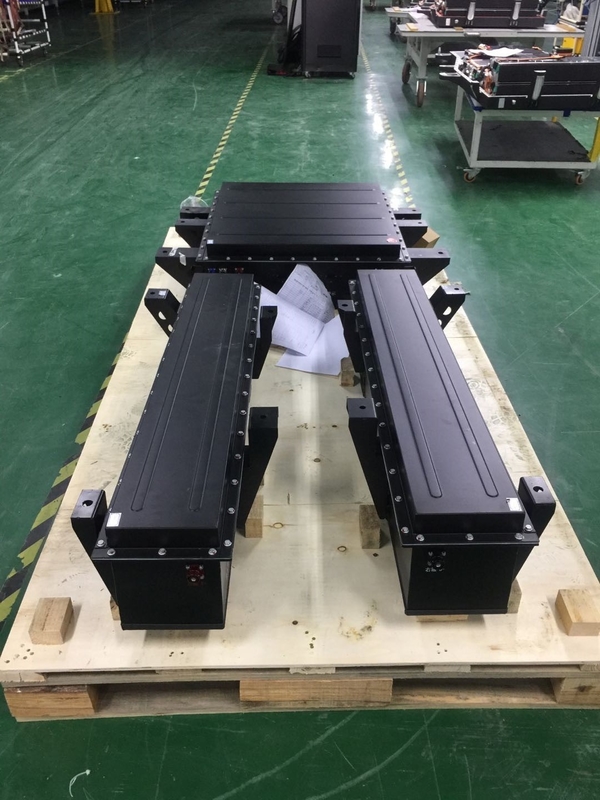

| Dimension(mm) | 1060*820*255(F), 1255*421*275(L), 1255*421*275 (R) | |
| Weigh(kg) | 328 |
32Ah Battery Module Specification
| Configuration | Dimension(mm) | Voltage(V) | Capacity(Ah) | Energy(KWh) | Energy Density Wh/kg | Group efficiency |
| 4P6S | 342.6*227*150 | 21.9 | 128 | 2.803 | 167 | 77.9 |
| 4P8S | 437.8*227*150 | 29.2 | 128 | 3.737 | 171.5 | 80 |
| 4P10S | 533*227*150 | 36.5 | 128 | 4.672 | 175.4 | 81.8 |
| 4P12S | 628.2*227*150 | 43.8 | 128 | 5.606 | 175.5 | 81.9 |
| 4P14S | 736.2*227*150 | 51.1 | 128 | 6.541 | 174.3 | 81.3 |
| 5P6S | 414*227*150 | 21.9 | 168 | 3.504 | 173.3 | 80.8 |

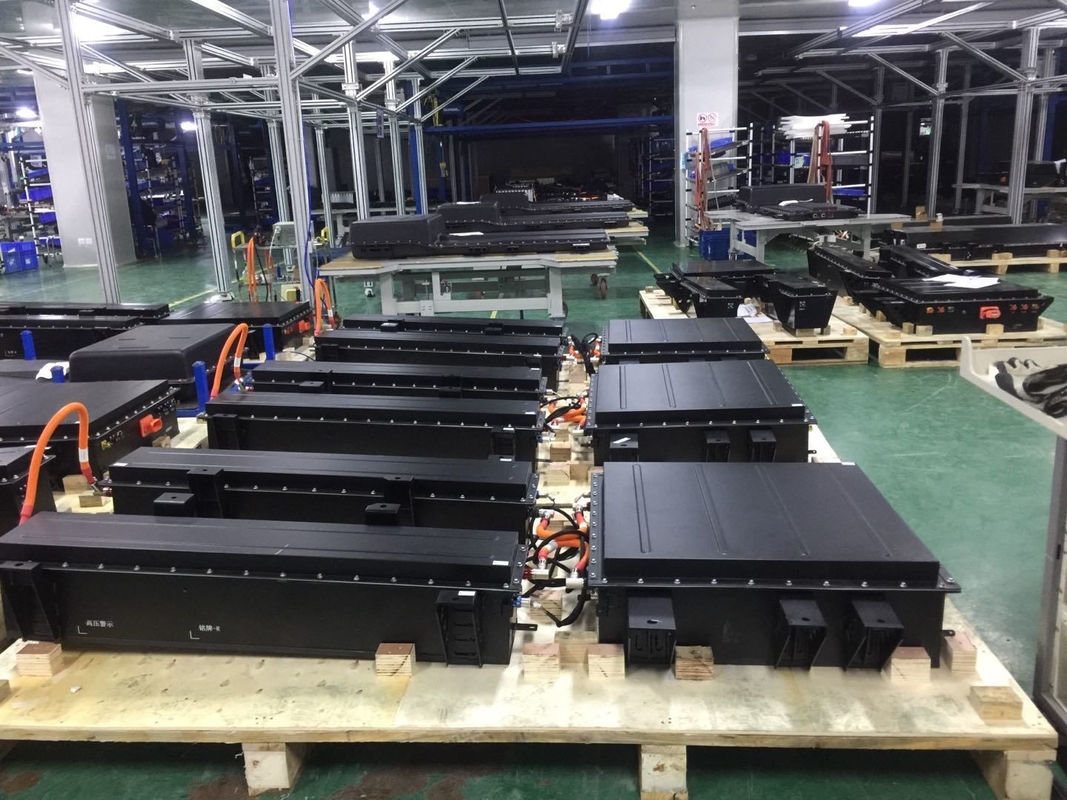

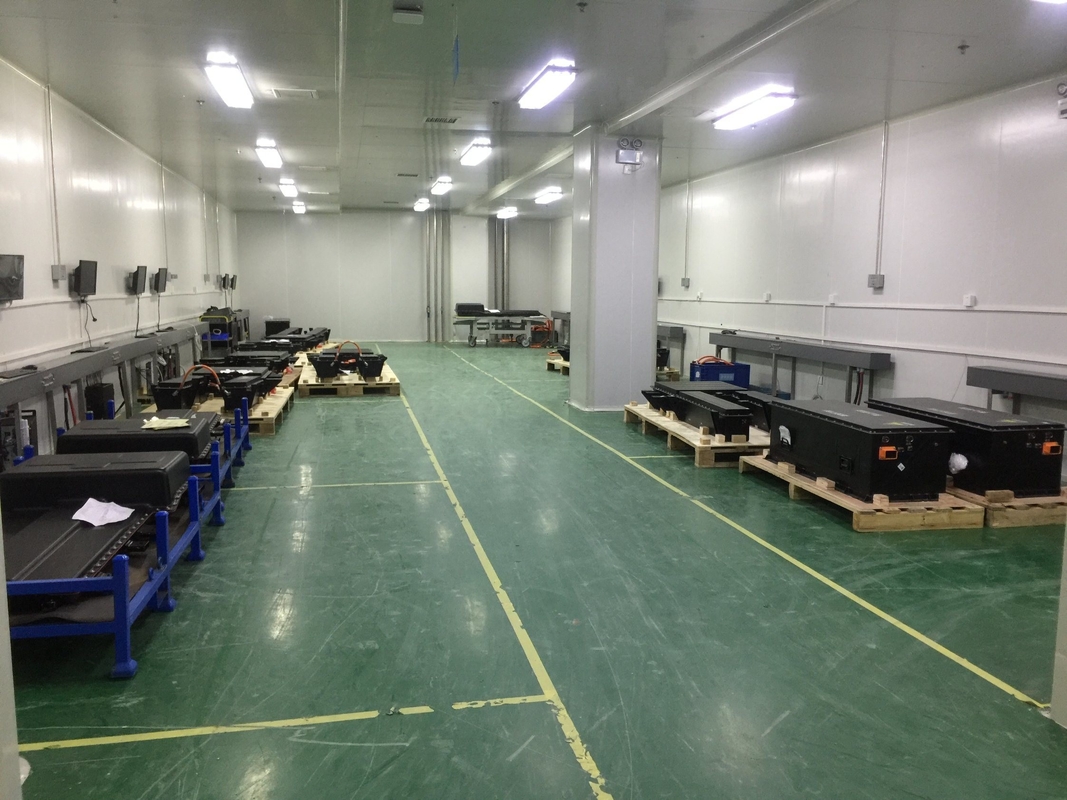

Battery pack production line
Battery module process flow
