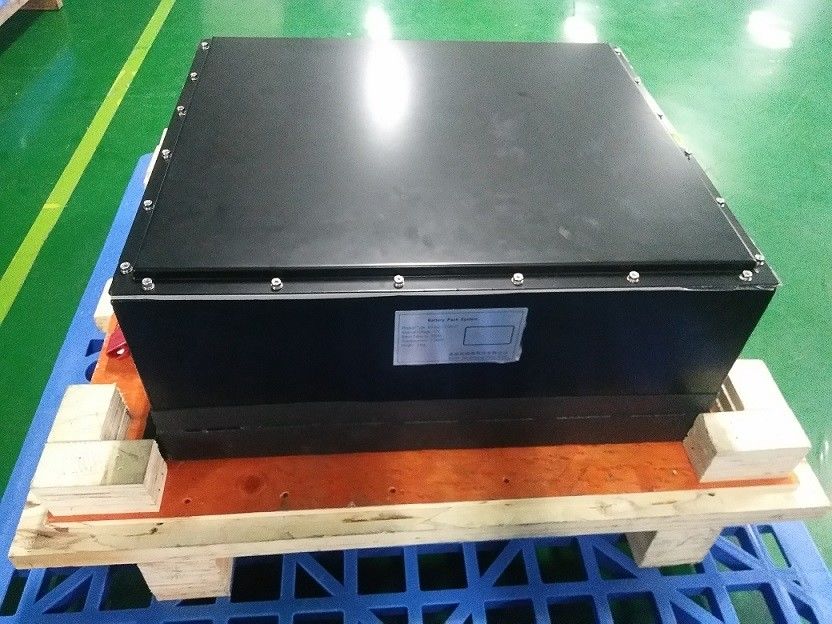

IP67 Electric Mini Car 72V 100Ah NCM Pouch Cell Battery
IP67 Electric Mini Car 72V 100Ah NCM Pouch Cell Battery IP67 Electric Mini Car 72V 100Ah NCM Pouch Cell Battery
Contact Now

IP67 Electric Mini Car 72V 100Ah NCM Pouch Cell Battery

Minimum Order Quantity : 10pcs Price : Negotiation
Packaging Details : PVC case with inner ,carton box outside Delivery Time : 25-30 days
Payment Terms : T/T or L/ C Supply Ability : 100pcs/week
Place of Origin: China Brand Name: SOUNDON
Certification: UN38.3, ROHS,MSDS,UL Model Number: EV-002-72100-01

Detail Information
Voltage: 72V Capacity: 100Ah
Battery Material: NCM Pouch Cell Cell Rated Voltage: 3.6V
Cell Rated Capacity: 15AH The Total Energy Of The Battery: 7.2kwh
High Light:

100Ah Pouch Cell Battery

,

72V Pouch Cell Battery

,

IP67 NCM Battery

Product Description

72V100Ah Electric Vehicle Batteries With High Current Rating ,High Energy Density For Electric Mini Car

Specifications:

ProjectParameter
Voltage Range60V---84V(72V)
Battery System Whole Energy (KWH)(KWh)23±2℃,1/3CRated :7.2kWh
Battery System Whole Capacity(Ah)(Ah)23±2℃,1/3CRated :100Ah
Capacity difference for Modules(Ah)≤1.5Ah
Single Battery cellSEPNi7688190P-15Ah
Battery Cell Configuration 4P1S
Battery system Working Temperature Discharge-20~55℃,Charge -10~55℃
Battery system Surrounding environment relative humidity 5%~95%
Battery system storage Temperature

-20～25℃(3-6 Month,50%SOC)
-20～45℃(1-3 Month,50%SOC)
-20～60℃(≤1 Month,50%SOC)

Battery system Max. charging current 100A
Battery system Max. Instance discharging current 300A
Battery system standard discharging current 100A
Battery system instant discharging current (Max.) (30s)250A
Battery system Max. Continuous discharging current (30min)100A
Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case (Ω)≥20MΩ
Battery system on Vehicle Waterproofing class IP67
Cooling system Air Cool



Soundon Electric vehicle and energy storage battery cells :


Soundon Cell List
ModelSEPNi8688190-13.5Ah
(Fast charging/discharging)		SEPNi8688190P-17.5AhSEPNi11217127P-32AhSEPNi11100302P-50Ah
Rated Capacity(Ah)13.517.53250
Typical capacity(Ah)14.217.932.9651
Rated Voltage(V)3.63.653.653.7
Internal Resistance(mΩ)≤2.5≤3.5≤2.0≤1.5
Thickness MAX(mm)8.68.711.511.8
Width MAX(mm)9292217101
High MAX(mm)195195127303
Power(Wh)48.663.875116.8185
Energy Density(Wh/Kg)178220217252
Energy Density(Wh/L)315409368512
High Temp performance
(55℃)		≥100%≥100%≥100%≥100%
Low Temp Performance
(-20℃)		≥75%≥75%≥75%≥75%
Self Discharge (RT28d)≤3%≤3%≤3%≤3%
2C Discharge/ 1C≥97%≥97%≥97%≥97%
3C Discharge/ 1C≥95%≥95%≥95%≥95%
C-Rate 2C CC/1C (CC+CV)≥88%///
C-Rate 3C CC/1C (CC+CV)≥85%///
C-Rate 4C CC/1C (CC+CV)≥82%///
Time using of Charge to 80% SOC (min)≤15///
Power Density (W/kg)@ 50%SOC 25℃ 30S≥1500///
Cycle (RT)3C/1C≥30001C/1C≥25001C/1C≥2500　
Mass production planning　Already Mass Production　Already Mass ProductionAlready Mass Production　19th,March,2019




Soundon lithium battery feature

1.Unique lithium battery of Lamination Technology with prismatic case

2) .specilist for Electric vehicle  battery

3.International Product certification : UN38.3,CB ,CE, Rohs ,UL certification

4.Company Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved

5.with ERP system can well control the cost and quality
