IP66 103Kwh Electric Vehicle Battery 15P108S For Truck

IP66 103Kwh Electric Vehicle Battery 15P108S For Truck

103Kwh Electric Vehicle Battery

IP66 Electric Vehicle Battery

15P108S Electric Truck Battery

Place of Origin:

China

Brand Name:

Soundon

Certification:

CE, MSDS, ROHS,UL

Model Number:

SD-EV-394.2-262.5

Contact Us
Request A Quote
Product Details
Voltage Range:
394.2V
Total Energy:
103.4kWh
Maximum Continuous Charging Current:
≤262.5A
Waterproof Grade Of Battery Box:
IP66
Cooling Method:
Natural Cooling
Model:
SD-EV-394.2-262.5
Highlight:

103Kwh Electric Vehicle Battery

,

IP66 Electric Vehicle Battery

,

15P108S Electric Truck Battery

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden package
Delivery Time
30 working days after payment
Supply Ability
50units / week
Product Description

103kwh Electric Vehicle Battery With UL Certificated And High Energy Dendity For Heavy Truck,Logistic Truck,





Content Parameter
Voltage 324V---453.6V(335.8V)
Energy(KWh)23±2℃,1/3C 103.4kWh
Capacity(Ah)23±2℃,1/3C 262.5Ah
Cell SEPNi8688190P-17.5Ah
Configuration 15P108S
Recommended ambient temperature range(℃) Discharge-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended 5%~95%
Storage temperature

-20~25℃(3-6months,50%SOC)

-20~45℃(1-3months,50%SOC)

-20~60℃(less than 1 month,50%SOC)

Maximum Continuous Discharge Current ≤262.5A
Maximum Continuous Charging Current ≤262.5A
Insulation resistance factory test value(Ω) ≥20MΩ
Waterproof Grade of Battery Box IP66
Cooling mode Natural cooling


Battery Model



Cell Model 8688190-17.5Ah
Model Type 5P1S
Model Size (H*W*T) 242× 97× 45.3(mm)

Rated Capacity Module



87.5Ah

Nominal Voltage Module



3.65V
Module Weight ≈1.51Kg
The Module Of Energy Density 211.5Wh/kg



Battery Module picture



IP66 103Kwh Electric Vehicle Battery 15P108S For Truck 0



Application



electric truck ,delivery truck ,heavey duty fleets

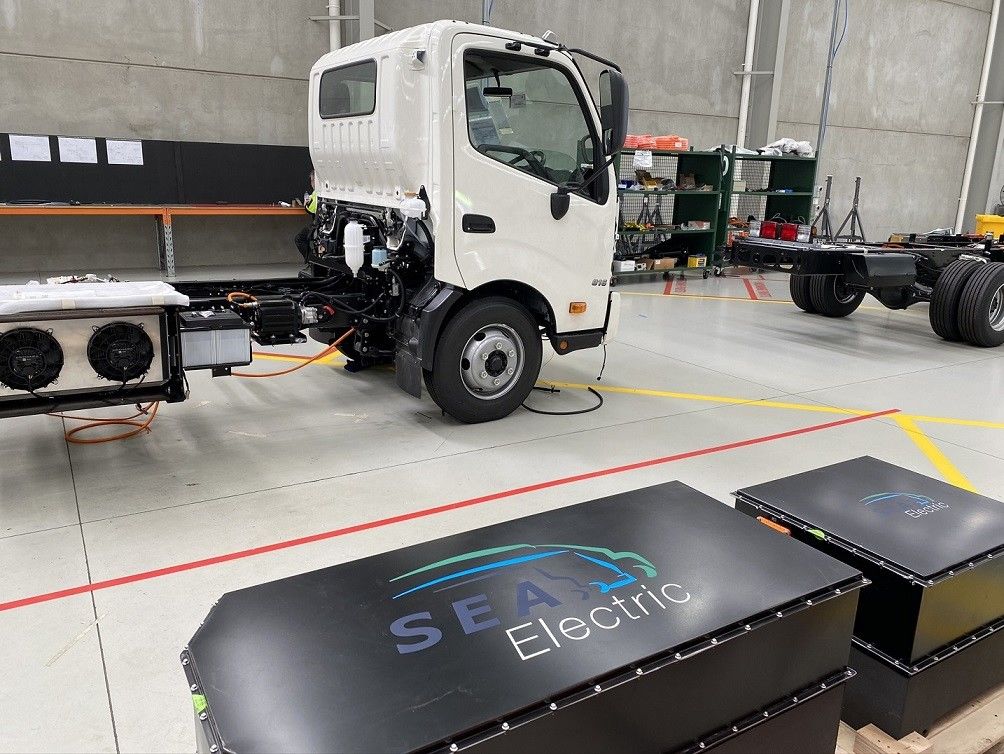

IP66 103Kwh Electric Vehicle Battery 15P108S For Truck 1




Battery cell  parameters



Capacity voltage: 3.6V17.5Ah 1C discharging (25±2 degree)



Charging end of voltage :4.2V



Standard charging and discharging current :0.5C



max continuous charge and discharge current :1C



max pluse charging current :1.5C(15-45 degree) < 30S



max pluse discharging current :3C (15-45 degree) < 30S



Working temperature : Charging:-10~45 degree



Discharging :-20~55 degree





Battery cell with UL certificate



IP66 103Kwh Electric Vehicle Battery 15P108S For Truck 2
