8C Fast Charge NMC Electric Vehicle Batteries For PHEV Battery Pack
Contact Person : Sophia Peng
Phone Number : +86-731-58567126
Minimum Order Quantity : | 1 | Price : | Negotiable |
---|---|---|---|
Packaging Details : | wooden package | Delivery Time : | 30 working days after payment |
Supply Ability : | 500units / week |
Place of Origin: | China | Brand Name: | Soundon |
---|---|---|---|
Certification: | CE, MSDS, ROHS,UL | Model Number: | SD-EV-345.6-81 |
Detail Information |
|||
Voltage Range: | 345.6V | Capacity: | 81Ah |
---|---|---|---|
Total Energy: | 27.9kWh | Max. Charging Current: | 81 |
Protection Level: | IP67 | Cooling Method: | Natural Cooling |
High Light: | 27.9Kwh Electric Vehicle Batteries,Electric Vehicle Batteries 345.6V,electric car batteries 81ah |
Product Description
Total Energy 27.9kWh Electric Vehicle Batteries 345.6V 81Ah with Fast Charge
Project | Parameter |
Voltage Range | 288V---403.2V(345.6V) |
Battery System Whole Energy (KWH) | Rated :27.9kWh |
Battery System Whole Capacity(Ah) | Rated :81Ah |
Capacity difference for Modules(Ah) | ≤1.5Ah |
Single Battery cell | SEPNi86190190P-13.5Ah |
Battery Cell Configuration | 6P1S |
Battery system Working Temperature | Discharge-30~50℃,Charge 0~45℃ |
Battery system Surrounding environment relative humidity | 5%~95% |
Battery system storage Temperature |
-20~25℃(3-6 Month,50%SOC) -20~45℃(1-3 Month,50%SOC) -20~60℃(≤1 Month,50%SOC) |
Battery system Max. charging current | 81A |
Battery system standard discharging current | 100A |
Battery system instant discharging current (Max.) | 162A |
Battery system Max. Continuous discharging current | 81A |
Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case | ≥20MΩ |
Battery system on Vehicle Waterproofing class | IP67 |
Cooling system | Air Cool |
Battery cell parameters
Nominal voltage :3.6
Nominal capacity13.5Ah
Max. Constant Charging Current :4C
Max. Pulse Charging Current:6C
Max. Constant Discharging Current :5C
Soundon New Energy industrial park

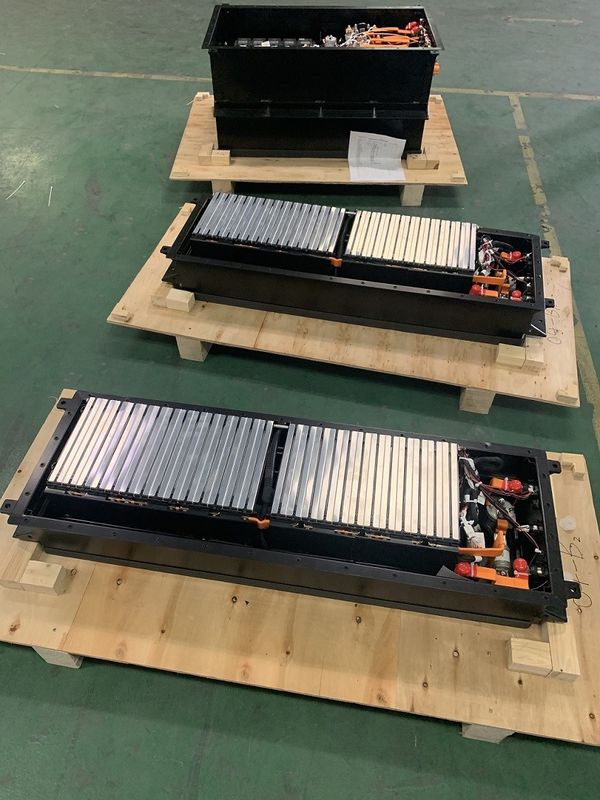

Electric vehicle battery package
Electric Jeepney
