8C Fast Charge NMC Electric Vehicle Batteries For PHEV Battery Pack
Contact Person : Sophia Peng
Phone Number : +86-731-58567126
Minimum Order Quantity : | 1 | Price : | Negotiable |
---|---|---|---|
Packaging Details : | wooden package | Delivery Time : | 30 working days after payment |
Supply Ability : | 100 units / day |
Place of Origin: | China | Brand Name: | Soundon |
---|---|---|---|
Certification: | CE, MSDS, ROHS | Model Number: | SD-EV-115.2V150AH |
Detail Information |
|||
Voltage Range: | 115.2V | Capacity: | 150Ah |
---|---|---|---|
Total Energy: | 17.28kWh | Cooling Method: | Natural Cooling |
Waterproof Grade Of Battery Box: | IP67 | Battery Cell: | LiFePo4 Pouch Cell |
High Light: | LiFePo4 Electric Vehicle Batteries,17.28kWh Electric Vehicle Batteries,Four Wheels Vehicles Lifepo4 Pouch Cell |
Product Description
1. Battery pack basic parameters
Battery pack configurate :3P36S
Voltage :36S*3.2V=115.2V
Capacity :150Ah
Total power :17.28kWh
Cooling and heating method :Natural cooling
Waterproofing grade : IP67
Battery weight :around :156Kg
2. Battery cell parameters
Parameters | |
Battery cell model | SEPFe11156260P |
Battery cell Voltage | 3.2V |
Capacity | 50Ah |
Charge ending Voltage | 3.65V |
Discharge ending voltage | 2.5V |
Discharge current | continuous 1C; instantaneous : 3C,10s |
Charging current | continuous 1C; instantaneous :2C, 10s |
working temperature |
charge :-20~55℃ discharge :-30~55℃ |
Energy density | ≈180Wh/Kg |
Size(H*W*T) | 260× 157×11(mm) |
Battery Module Spec
Model | SEPFe13109314-50Ah |
Battery cell capacity | 50Ah |
Battery cell Voltage | 3.2V |
Configuration | 3P18S |
Module size (H*W*T) | 354× 813× 114mm |
Module Capacity | 150Ah |
Module voltage | 57.6V |
Module power | 8.64kWh |

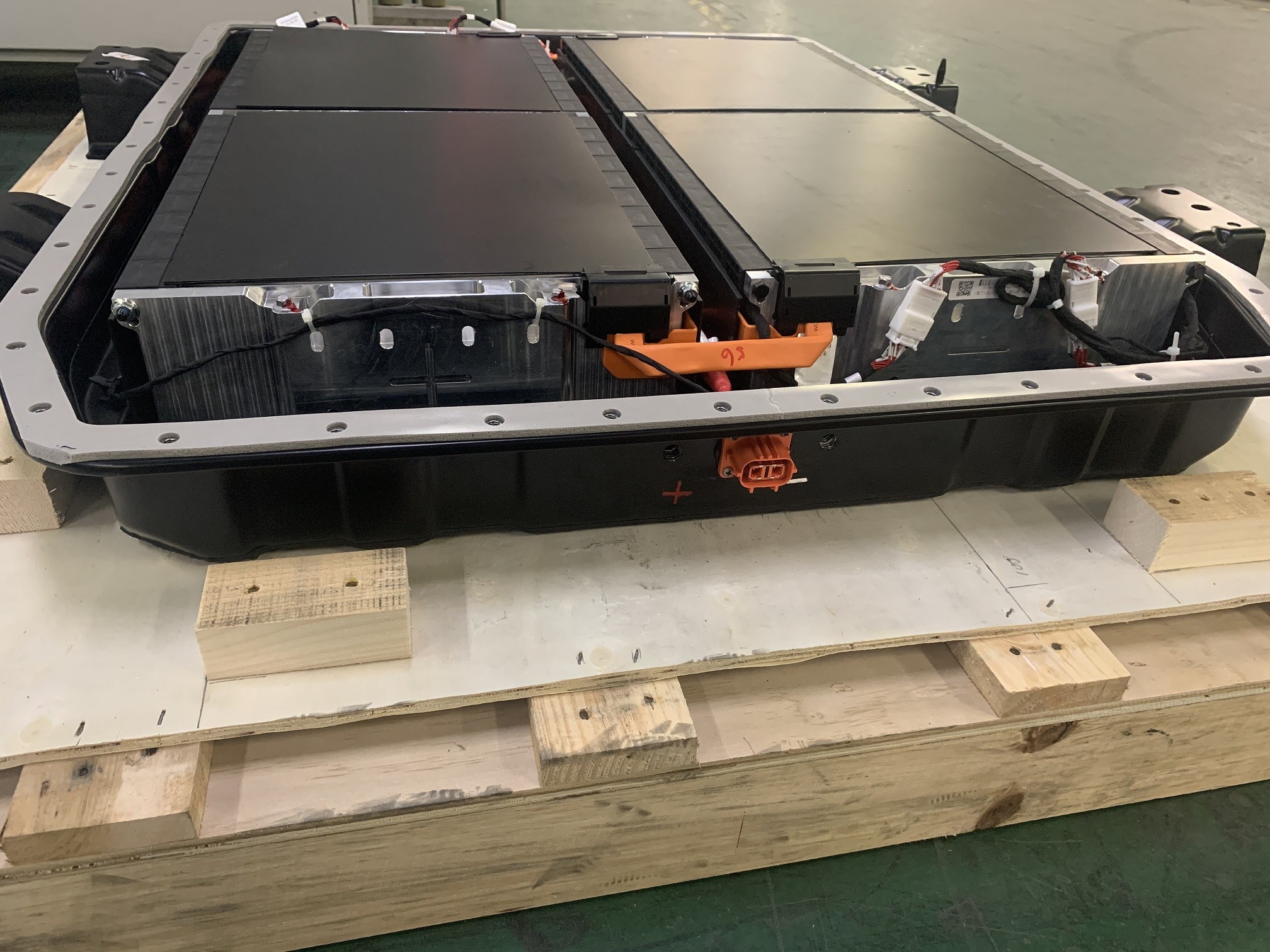

Battery Pack
