521kwh 20FT Container Storage Battery Systems For Off Grid Energy Storage Station

521kwh 20FT Container Storage Battery Systems For Off Grid Energy Storage Station

521kwh Container Storage Battery Systems

20FT Container Storage Battery Systems

Contact Us
Request A Quote
Product Details
Model NO.:
SD-ESS-1.5MW
Nominal Power:
500kw
Application:
Off-Grid Energy Storage Station ,Smart
Transport Package:
Carton
Specification:
20ft
Trademark:
Soundon
Origin:
Hunan China
HS Code:
8507600090
Supply Ability:
500pieces/Year
Weight:
20FT
Warranty:
10 Years
Cycle Life:
6000 Cycles
Nominal Capacity:
521MW
Rated Capacity:
521MW
IP Grade:
IP54
Customization:
Available | Customized Request
Highlight:

521kwh Container Storage Battery Systems

,

20FT Container Storage Battery Systems

Payment & Shipping Terms
Product Description
521kwh 20FT Container Storage Battery Systems for off Grid Energy Storage StationSoundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and  transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.




Product Description





521KWh 20ft Container Storage Battery Systems For Off-grid Energy Storage Sation

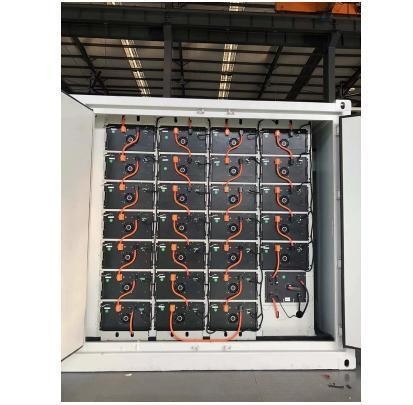

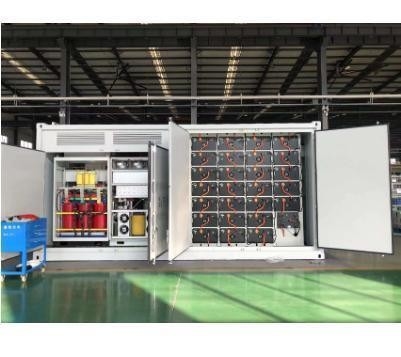

This energy storage system with  1  set 500KW/521KWh LiFePO4 battery system ,air conditioner ,500KW PCS ,EMS ,fire fighting system .



Parameters



paramerters
Capacity  521KWh
Rated power 500KW
cycle life  >5000 cycle (90%DOD)
charge and discharge efficency 88%(under air conditioner )
charge and discharge efficency 82% (without air conditioner)
working  temperature  -20~50°C
storage temperature -40~50°C
 Battery cell
Battery type  LiFePO4
Rated voltage and capacity 3.2V50Ah
interal resistance  0.8
Voltage Range  2.7-3.65V
working temperature  charge :-10~50°C
  discharge :-30~55°C
  Max humidity 90%
cycle life  around 5000 times
Working life    more than 8 years





System feature

  •  support RS485  and RS232
  •  can support 1 high-speed Ethernet port and 4G
  • support  Modbus RTU,Modbus  TCP ,CAN protocol
  • Using high energy density and high cycle life lithium battery
  • Module design, easy to install and maintain
  • support energy storage system  peak-load shifting ,battery protection and system protection strategyand so on .
  • Independent fire control system, and support fire emergency stop, local system emergency stop, remote emergency stop function







Application



 Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.
