Customized LFP Battery Cell 3.2 V 280ah Lifepo4 Battery Cell For Industrial Energy Storage System

Customized LFP Battery Cell 3.2 V 280ah Lifepo4 Battery Cell For Industrial Energy Storage System

3.2 v 280ah lifepo4 battery cell

Customized 280ah lifepo4 battery cells

LFP Battery Cell 3.2 V 280ah

Contact Us
Request A Quote
Product Details
Model NO.:
280ah
Charge Ending Voltage:
3.65V
Discharge Ending Voltage:
2.0V
Max. Constant Charging Current:
1c
Cell Weight:
5.4kg
Transport Package:
Carton
Specification:
72*174*205mm
Trademark:
Soundon New Energy
Origin:
Xiangtan, China
HS Code:
8507600010
Type:
Li-ion Battery
Cathode Material:
LFP
Rechargeable:
Yes
Size:
Large
Nominal Capacity:
280ah
Nominal Voltage:
3.2V
Samples:
US$ 200/Piece 1 Piece(Min.Order) | Request Sa
Customization:
Available | Customized Request
Highlight:

3.2 v 280ah lifepo4 battery cell

,

Customized 280ah lifepo4 battery cells

,

LFP Battery Cell 3.2 V 280ah

Payment & Shipping Terms
Product Description
.
Overview

product description

280Ah Lifepo4 Prismatic Lithium Battery For Industrial and Commercial Energy Storage System
  1. Output with high efficiency: Standard discharge current is 0.5C, instantaneous discharge current is 2C.
  2. High capacity, providing more energy in smaller volume.
  3. Good performance at different temperatures
  4. Good safety performance: no burning, no explosion
  5. Long cycle life
Product Parameters



Items Specification
 Capacity 280Ah
 Voltage 3.2V
Charge cut-off voltage 3.65V
Discharge cut-off voltage 2V
Standard charge current 0.5C
Standard discharge current 0.5C
Max continuous charge current 1C
Max continuous  discharge current 1C
Instantaneous charge current 1.5C<30s
Instantaneous discharge current 2C
Operating temperature Charging :0~55ºC
Discharging :-20~55ºC
Storage temperature ≤1 month: -20~+45ºC
>1 month: -10~+35ºC
Cycle life  80%SOH≥6000cls

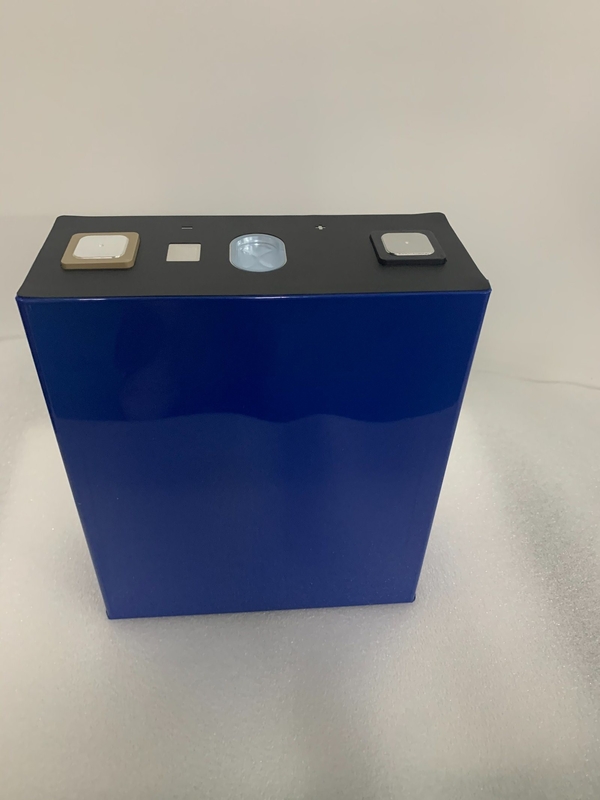

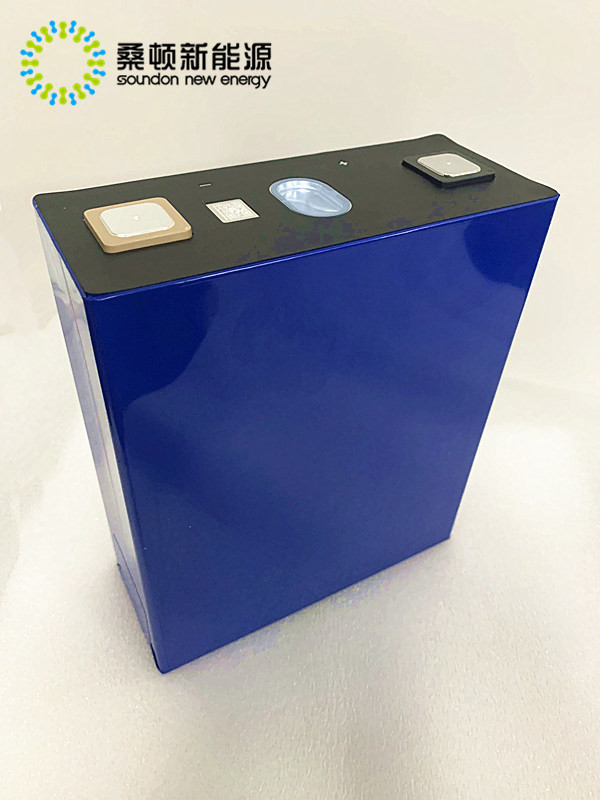

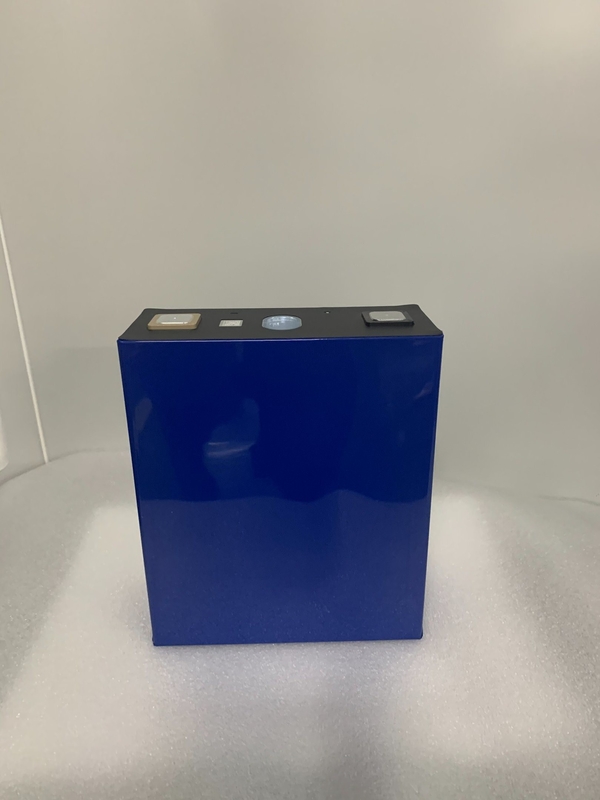

Detailed Photos



LFP Battery Cell 280ah for Industrial Energy Storage SystemLFP Battery Cell 280ah for Industrial Energy Storage System

LFP Battery Cell 280ah for Industrial Energy Storage SystemLFP Battery Cell 280ah for Industrial Energy Storage System

Company Profile

An Expert Maker of LiFePO4 and NCM battery  for Electric vehicle and Energy Storage system

Soundon New Energy established in 2011, which is invested by Sound Global (stock :HK00967) and stock jointed by Sound Environment (SZ000826). With a registered capital of $392 million , is an enterprise engage in technology innovation, product design and marketing of battery cathode materials, high capacity lithium ion batteries .

LFP Battery Cell 280ah for Industrial Energy Storage System

Our products are widely used in public lives, military affairs, aviation and  transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.

Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016

LFP Battery Cell 280ah for Industrial Energy Storage SystemLFP Battery Cell 280ah for Industrial Energy Storage SystemLFP Battery Cell 280ah for Industrial Energy Storage SystemLFP Battery Cell 280ah for Industrial Energy Storage System
Our advantage

Soundon industrial park covers an area of 2 million square meters, with ten automatic production lines, all production line applied advanced equipment and famous brand facilities (most of R&D and QC instrument were imported from the US, Japan and UK) which are manned by 1,000 workers.

The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.

In fact, we are very proud of working with several famous companies such as Dyson (the UK) and Axell Wireless (Sweden), Intel (American), Share'n Go (Italy), (India),SAFT(France), which have become satisfied with our services and high-quality products.

R&D sources

The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.


We have created a well-organized environment of research and development. With a total of 2000 m2of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery

QC introduction

our company Obtained ISO9001-2008 ,ISO 14001 and ISO/TS16949  certification, applied the financial ERP systems and the modern administration management system and passed all kinds of the quality standards.

Our factory has a complete Q.A. & Q.C.system. We own authorized sets of analyzing instruments with high efficiency and high sensitivity.

Everyone at Super strives to meet or exceed the expectations of customers, and aims to constantly improve both quality and service of our product, to achieve much higher level on different aspects of company in the long run.

We also have framed a well defined quality management system under the supervision of quality inspectors.
The Quality System consists of 5 main parts below:
1. Quality Training
2. Incoming Quality Control
3. In-process Quality Control
4. Reliability Testing
5. Outgoing Quality Control



Certifications

Soundon have a full-scale produce qualification such as ISO 9000:2015, ISO 140001:2015, ISO/TS 16949 and OHSA18001-2007 certification. Mostly of lithium battery products gain the national and safety explosion-proof and export permit. like CE, CB, UN38.3 and RoHS ,R100 international certification, Soundon aims to be your long-term partner, ensures product quality, on-time delivery, competitive price and user's equity!

LFP Battery Cell 280ah for Industrial Energy Storage System



LFP Battery Cell 280ah for Industrial Energy Storage System

FAQ

Why choose us?

1. The factory covers an area 20,000 m2, have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.
 2. ISO9001 certified factory: passed ISO9001:2015 inspection, strictly control the working environment.
3. Quality assurance: Using high-quality material and build a comprehensive quality control system from parts to finished products. Importantly 100% production inspection.
4. Professional R&D center: to cooperate with the specification, proofing process, and free samples, OEM and ODM are warmly welcomed.
5. Low MOQ: Strength factory, strong production capacity, most of the battery models have stock, can be fast dispatched.
6. Lithium battery certification with CE/CB/IEC62133/KC/PSE/ROHS/ERRCS/UN38.3, etc.

7. Most of our sales and technical team has rich lithium battery experiences of 10-15 years.
