Place of Origin:
China
Brand Name:
Soundon
Certification:
MSDS,UN38.3,CE ROHS
Model Number:
SD-7688190-10AH

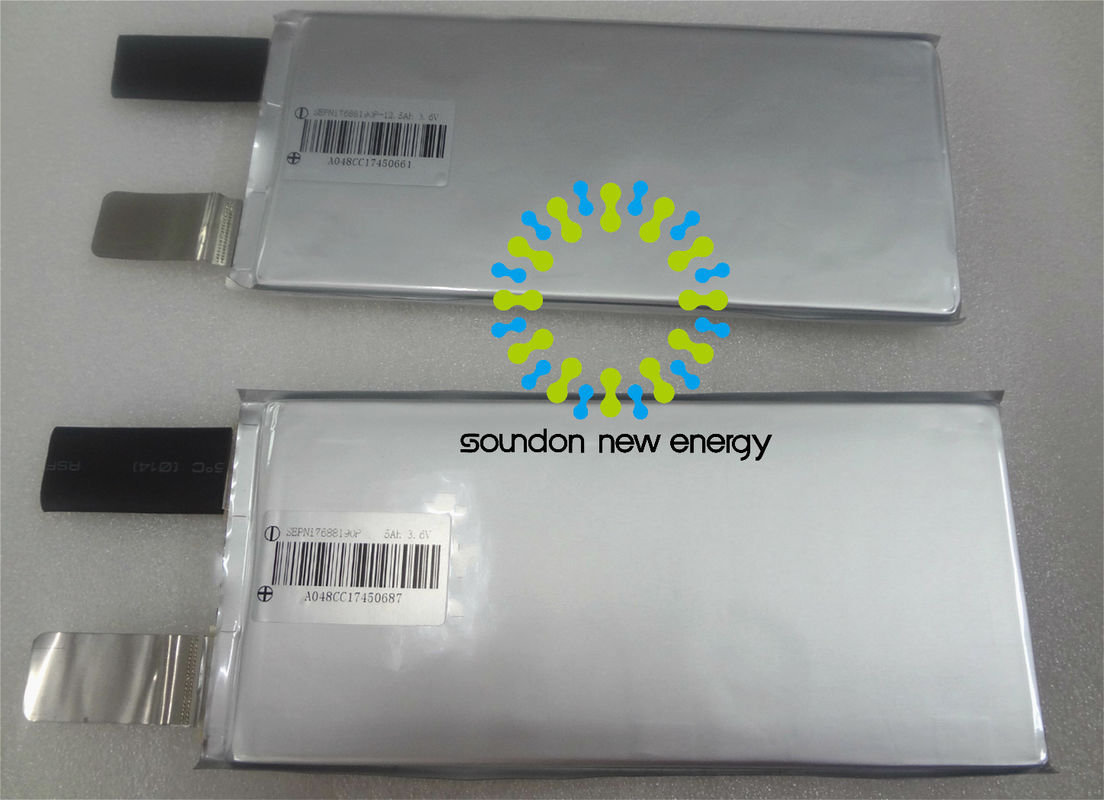

Hight Capacity 10ah Rechargeable Lithium Ion Batteries for car batteries
Specification :
|
Item |
Specification |
|
Capacity |
10Ah |
|
Voltage |
3.2V |
|
Charge cut-off voltage |
3.65V |
|
Discharge cut-off voltage |
2V |
|
Standard charge current |
25±3℃ 0.5Cconstant current discharge to 3.65V ,then constant voltage 3.65V charge till charged current cut off to 0.02C |
|
Standard discharge voltage |
25±3℃ 0.5C constant current discharge to 2V |
|
Max charging current |
Max charge 1C |
|
Max discharging current |
Max discharge current 3C |
|
Operating temperature |
Charging :0~45℃,max 90%RH Discharging :-20℃ ,Max 90%RH |
|
Impendence |
< 3 |
|
Cell weight |
255±20g |
|
Storage temperature |
0~45 degree |
| cycle life | >2000times |
|
High rate discharge capacity |
Discharge capacity : 1C>90% initial capacity 2C>90% initial capacity 3C>85%initial capacity |
Hight capacity Battery cells model :
battery are mainly use for electric vehicle and electric buses ,Solar energy system ,UPS Telecom base station ,Home energy storage system ,household energy storage
| Module | Capacity (Ah) |
Voltage (V) | Inner resistance (mΩ) |
Thickness Max(mm) | Width Max(mm) | Height Max(mm) | Energy Density (WH/KG) | High Temp Performance (55℃) |
Low Temp Performance (-20℃) |
3Cdischarge | cyclelife (RT 1C/1C) |
| SEPNi7688190P-12.5Ah | 12.5 | 3.65 | ≤2.5 | 7.6 | 88.0 | 190.0 | 180 | ≥99% | ≥70% | ≥90% | ≥2000time |
| SEPNi76190190P-25Ah | 25 | 3.65 | ≤2.0 | 7.6 | 190.0 | 190.0 | 190 | ≥99% | ≥70% | ≥90% | ≥2000times |
| SEPFe80125256P-20Ah | 20 | 3.2 | ≤3.5 | 8.0 | 125.0 | 256.0 | 134 | ≥99% | ≥50% | ≥90% | ≥3000 times |
| SEPFe90161227P-25Ah | 25 | 3.2 | ≤3.0 | 9.3 | 161.0 | 227.0 | 140 | ≥99% | ≥50% | ≥90% | ≥3000times |
| SEPFe11190316P-50Ah | 50 | 3.2 | ≤1.8 | 11.3 | 190.0 | 316.0 | 140 | ≥99% | ≥50% | ≥90% | ≥3000times |
| SEPFe12212268P-50Ah | 50 | 3.2 | ≤1.8 | 11.8 | 212.0 | 268.0 | 140 | ≥99% | ≥50% | ≥90% | ≥3000times |
Battery cells Test Machine
our battery test centre with professinoal equipments can do the testing of hearimpact , salt-water dipping , Temerparature performance ,rate tester ,and cyclelife tester
