Place of Origin:
China
Brand Name:
SOUNDON
Certification:
UN38.3, ROHS,MSDS
Model Number:
SEPFe80170165 --3.2V20 Ah

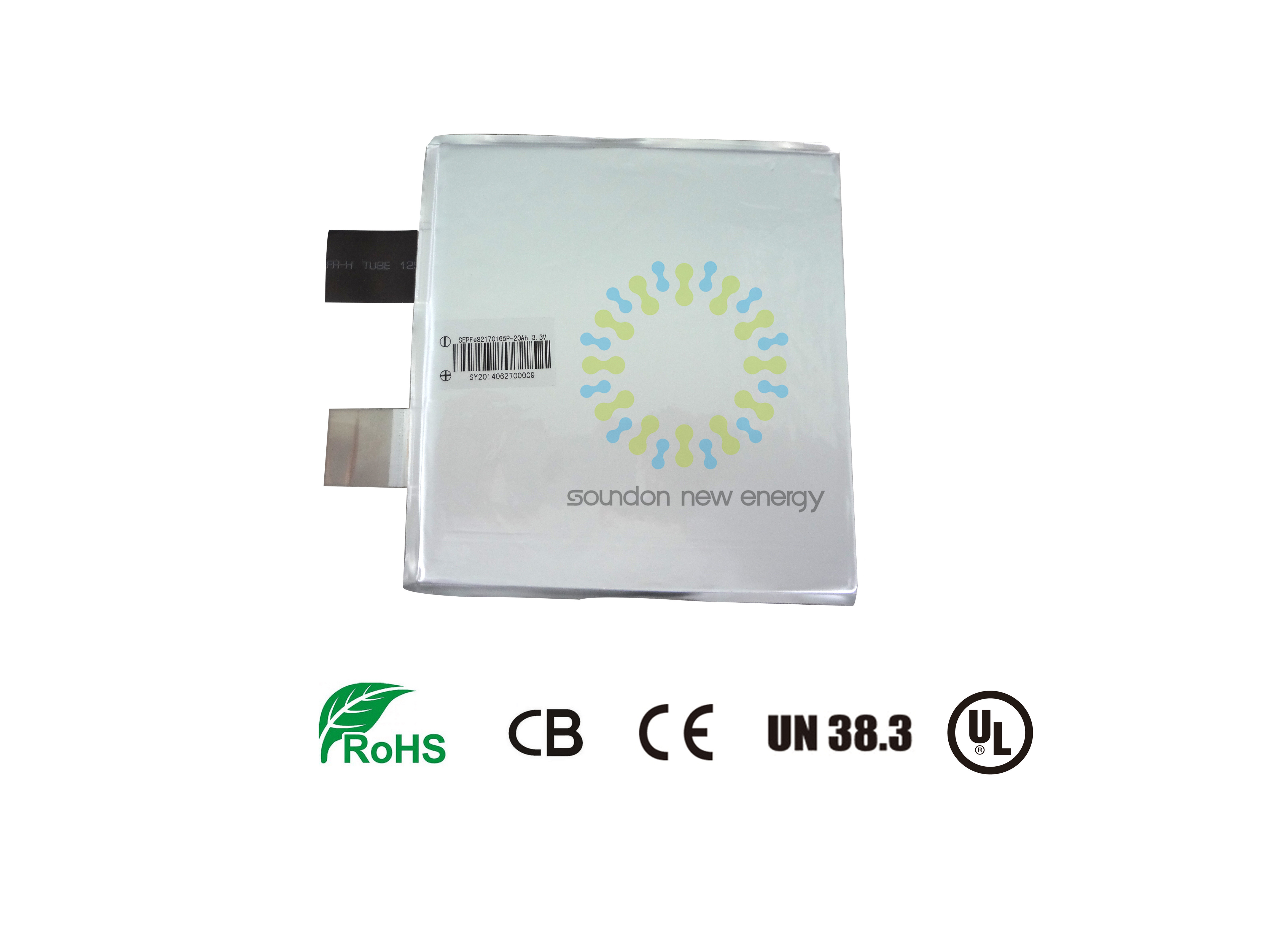

UPS Rechargeable Lithium Ion Batteries with -20 - 60℃ Working Temp 1C Max Charge Current
Specifications:
| Capacity | 20Ah |
| Voltage | 3.2V |
| Charge ending voltage | 3.65V |
| Discharge ending voltage | 2V |
| Standard charge current | 0.5C |
| Standard discharge voltage | 0.5C |
| quick charge current | 1C |
| quick discharge current | 2C |
| Instantaneous charge and discharge current | 3C |
| working temperature | Charging :0~45℃ |
| Discharging :-20~60℃ | |
| Storage temperature | ≤1 month: -20~+50℃ |
| ＞1 month: -10~+35℃ | |
| Initial load | 50%-60% |
| Weight | 520g |
| Dimension | 8.2*169.8*165.8mm |
Advantages:
About lithium-ion battery:
Lithium-ion uses a cathode (positive electrode), an anode (negative electrode) and electrolyte as conductor. The cathode is metal oxide and the anode consists of porous carbon. During discharge, the ions flow from the anode to the cathode through the electrolyte and separator; charge reverses the direction and the ions flow from the cathode to the anode.
Soundon Battery cell list :
With NCM and Lifepo4 battery cells system
Target using market are : Electric vehicle ,electric bus ,electric truck ,Solar energy storage ,UPS system,smart off-grid system
| Model | Rated capacity (Ah) |
Rated voltage (V) | Impedance (mΩ) |
Thickness Max(mm) | Width Max(mm) | Height Max(mm) | Energy density(WH/KG) | Cycle life (RT 1C/1C) |
Application |
| SEPNi7688190P-12.5Ah | 12.5 | 3.65 | ≤2.5 | 7.6 | 88.0 | 190.0 | 180 | ≥2000 times | EV |
| SEPNi76190190P-25Ah | 25 | 3.65 | ≤2.0 | 7.6 | 190.0 | 190.0 | 190 | ≥2000 times | EV |
| SEPFe80125256P-20Ah | 20 | 3.2 | ≤3.5 | 8.0 | 125.0 | 256.0 | 134 | ≥3000times | EV |
| SEPFe90161227P-25Ah | 25 | 3.2 | ≤3.0 | 9.3 | 161.0 | 227.0 | 140 | ≥3000times | EV |
| SEPFe11190316P-50Ah | 50 | 3.2 | ≤1.8 | 11.3 | 190.0 | 316.0 | 140 | ≥3000times | ES |
| SEPFe12212268P-50Ah | 50 | 3.2 | ≤1.8 | 11.8 | 212.0 | 268.0 | 140 | ≥3000times | EV |
