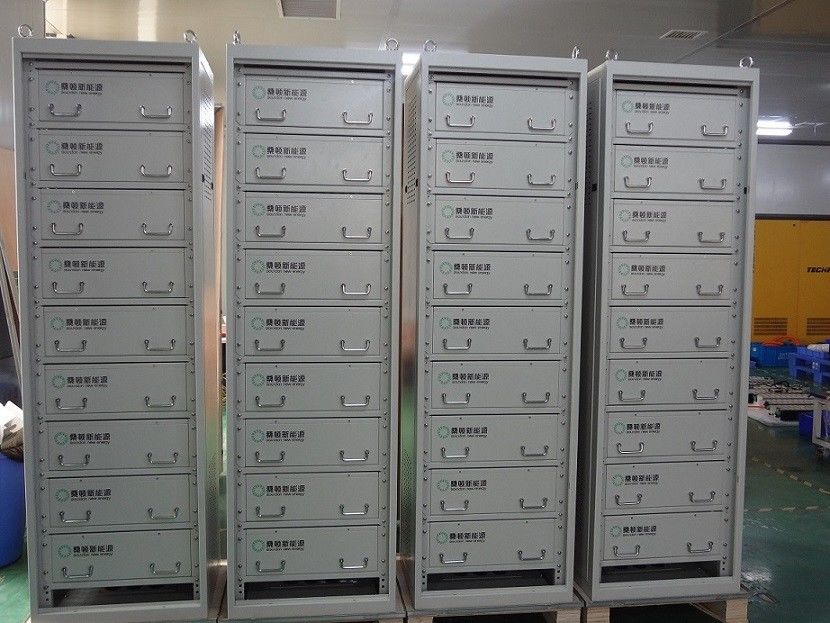

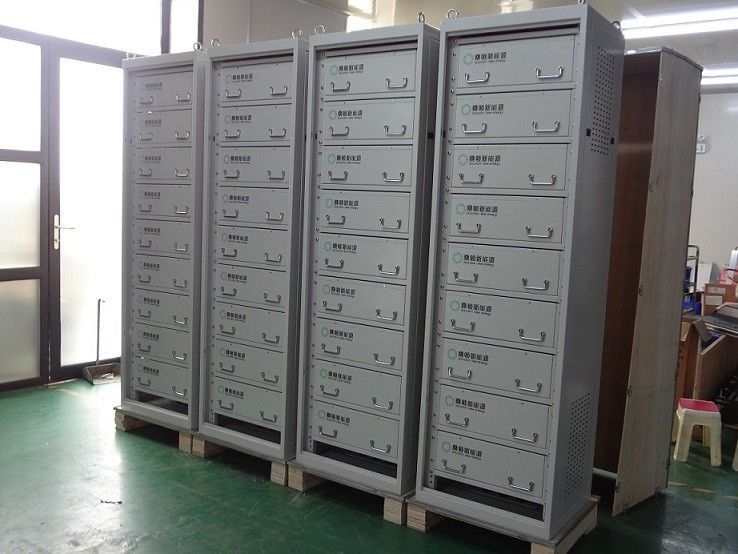

197V 170Ah Storage Battery Systems For Intellengent Building Power Supply

Minimum Order Quantity : 1 Packaging Details : 1PCS / carton box
Delivery Time : 35day
Place of Origin: China Brand Name: Soundon
Certification: CE,ROHS UN38.3,TS16949 Model Number: SD-ES--197V170Ah

Detail Information

Rate Voltage: 197V Battery Mocule: 197V170Ah
Protection Level: IP20 Dimension: 600*530*2000mm
Application: Energy Storage Station ,smart Microgrid ,factories Power Grid Supply Batterycell: 3.65V17Ah

Product Description

197V170Ah with CE, BIS certificates Storage Battery Systems For Intellengent Building Power Supply





Battery pack power supply parameter



Parameter
Configuration 54S10P
system voltage 197.1V
system capacity 170Ah
working voltage range 162V~226.8V
charge&discharge current 0.5C
max charge &discharge current 1C
working temperature range 0~45℃
IP grade IP20
dimension 600mm*530mm*2000mm





Energy storage system function :



This system is applied to UPS system, micro power grid and distributed generation, smart grid and renewable energy, smooth access scenario, for the realization of the wind, light, the large-scale application of renewable energy, such as to provide effective support, at the same time can also be used as a computer room and other emergency standby power.





Features:



Powerful centralized monitoring system long life

Good consistency, low self-discharge rate;

Easy maintenance, effectively save the cost of operation and maintenance

Wide temperature range, high reliability;

Easy to use and expandable, providing a one-stop solution

SOC, SOH and other real-time data state visualization
