521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station

Minimum Order Quantity :	1	Packaging Details :	1PCS / Container
Delivery Time :	35day

Place of Origin:	China	Brand Name:	Soundon
Certification:	CE,ROHS UN38.3	Model Number:	SD-ESS-1.5MW

Detail Information
Rated Capacity:	521MW	Nominal Power:	500KW
IP Grade:	IP54	Communication Interface:	Ethernet
Protection Level:	IP54	Dimension:	20ft
Application:	Off-grid Energy Storage Station ,smart Microgrid ,factories Power Grid Supply
High Light:	20ft Container Storage Battery Systems , 521KWh Storage Battery Systems , IP54 Off Grid Energy Storage Station

Product Description

521KWh 20ft Container Storage Battery Systems For Off-grid Energy Storage Sation

This energy storage system with 1 set 500KW/521KWh LiFePO4 battery system ,air conditioner ,500KW PCS ,EMS ,fire fighting system .

Parameters

paramerters
Capacity	521KWh
Rated power	500KW
cycle life	>5000 cycle (90%DOD)
charge and discharge efficency	88%(under air conditioner )
charge and discharge efficency	82% (without air conditioner)
working temperature	-20~50°C
storage temperature	-40~50°C
Battery cell
Battery type	LiFePO4
Rated voltage and capacity	3.2V50Ah
interal resistance	0.8
Voltage Range	2.7-3.65V
working temperature	charge :-10~50°C
	discharge :-30~55°C
	Max humidity 90%
cycle life	around 5000 times
Working life	more than 8 years

System feature

support RS485 and RS232
can support 1 high-speed Ethernet port and 4G
support Modbus RTU,Modbus TCP ,CAN protocol
Using high energy density and high cycle life lithium battery
Module design, easy to install and maintain
support energy storage system peak-load shifting ,battery protection and system protection strategyand so on .
Independent fire control system, and support fire emergency stop, local system emergency stop, remote emergency stop function

Application

Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.

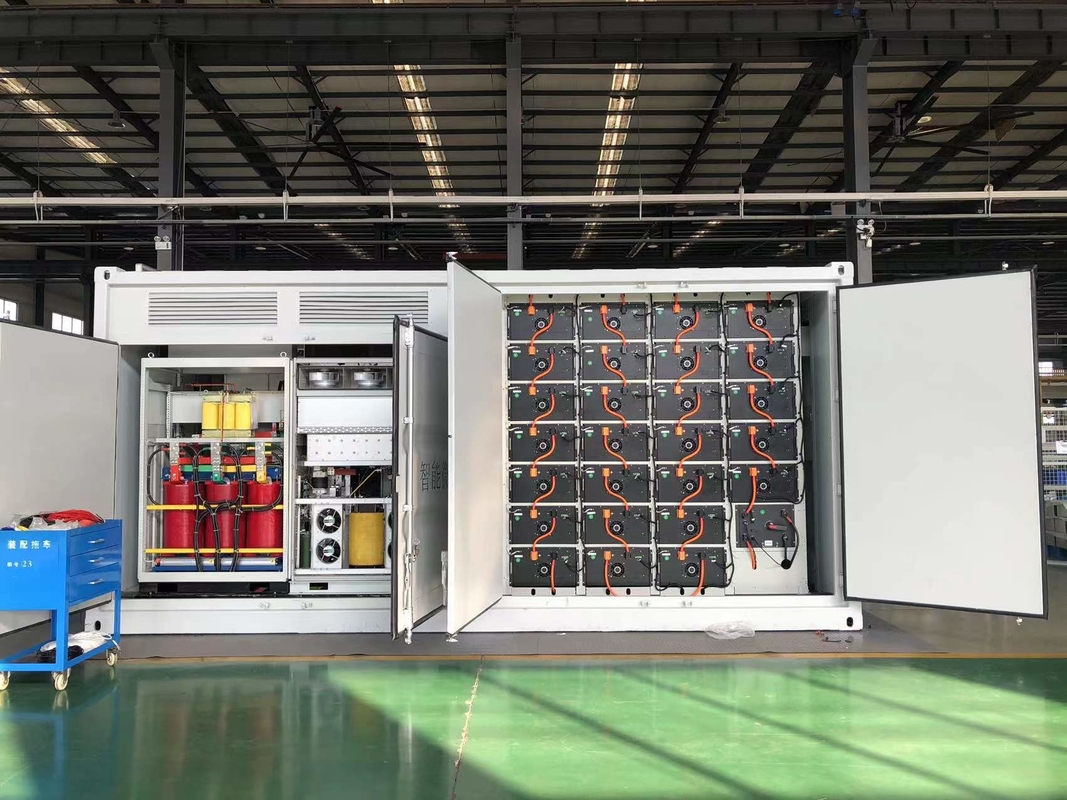

Battery system

521KWh 20ft Container Storage Battery Systems For Off Grid Energy Storage Station 1
