CE ROHS MSDS Solar Light Battery 24V 80AH With IP65 For Street Light

Minimum Order Quantity : 1 Price : Negotiation
Packaging Details : wooden package Delivery Time : 7-10 days for sample , 20-25days for mass
Supply Ability : 500 Units / week
Place of Origin: China Brand Name: Soundon
Certification: CE,ROHS ,MSDS Model Number: ES-UC-024-0080-A

Detail Information

Capacity ,voltage: 24v80Ah Dimension: T:140mm*W:306mm *H:357mm
Working Voltage: 24V~29.2V Rapid Charge And Discharge Current:: 10A
Instantaneous Charge And Discharge Current: 15A
High Light:

solar powered batteries

,

deep cycle solar batteries

Product Description

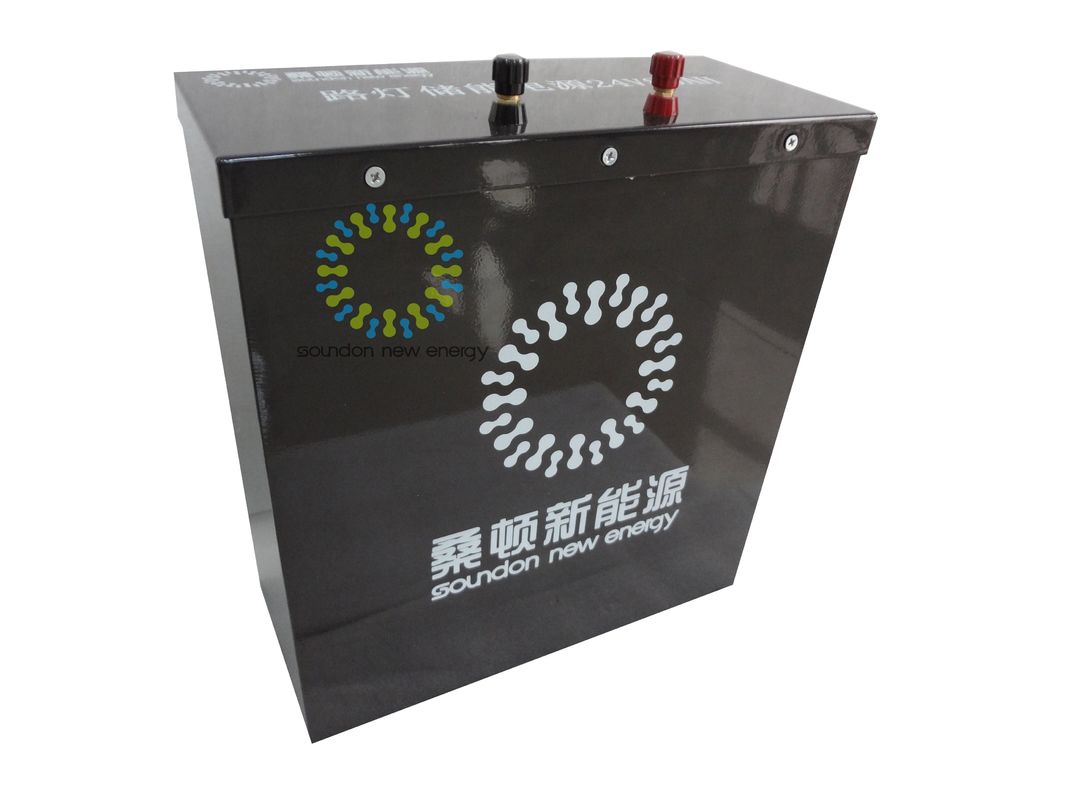

Solar Light Battery 24V 80AH , with IP65 Lithium Storage Battery Systems for street light



specification :



No.

Item

Parameters

Remark

Monomer battery



1

Rated Voltage

3.2V



2

Capacity

Rated Capacity:20Ah

Standard Discharge Current: 0.5C

Discharge Cut off Voltage: 2.0V

Min Capacity:20Ah

3

Charge  Cut off voltage

3.65±0.03V



4

Impedance

≤3 mΩ



battery

pack

5

Compound mode

8 series 4 Parallel





6

Capacity

Rated Capacity:80Ah

Standard Discharge Current: 5A

Discharge Cut off Voltage:20.0V

Min Capacity:80

7

Rated Voltage

Average Voltage 24V



8

Working voltage

24V~29.2V



9

Charge conditions



Standard charge current:5A



Rapid Charge current:10A

Instantaneous Charge current:15A

10

Discharge conditions

Standard discharge current:5A



Rapid discharge current:10A

Instantaneous discharge current:15A

11

Impedance

≤50mΩ



12

Working Temperature

Charge

(0~40)℃

60±25% humidity

Discharge

(-20~60)℃



13

Cycle life

≥2000 times





14

Storage Temperature

≦1 month

-10~45℃

Relative humidity≤90%

≦3month

-10~25℃



Description:



24V80AH lifepo4 batteries used for the solar street light  ,household energy storage .



Solar led light battery is store the electric energy of the solar panel battery produce it , which the solar panel take over the solar energy in the daylight and convert into electric energy then output,  and store the electric energy into lithium ion battery by the solar controller integrated .It’s a new energy street light applied in the illumination is not enough or evening lighting .

.Lithium ion battery is already have been used for the solar street light as the long span life ,free maintenance , high charge and discharge efficiency ,low self discharge rate ,can deeply discharging and other advantages



  1. With good safety performance which use the LiFePO4 cell
  2. integrated design ,free maintenance ,with long span life 8~10 years
  3. Input connector is Rapid crimping terminal ,convenience for install

4 With smart BMS, can real monitoring the cell operating ,can intelligent keep the storage battery data.

5  With unique water proof, IP level IP65.



Applications:

1. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household

energy storage etc.

  •

Competitive Advantage:

1.       With good lower temperature performance ,high energy density ,High charging and discharging efficiency

2.       Modularized :full adopt the modular tech ,enable battery application and maintain easier systemmatism

3.       Can provide the whole battery pack solution from the lithium ion cells and battery pack

4.       With advanced full automatic equipments are imported from the Korea ,Japan etc

5.       Many experienced industry technology teams can quick provide the professional proposal for customer
