E Tricycle / Rv Deep Cycle Lithium Ion Car Battery Safety 72V 60Ah IP65 UN38.3 / UL

E Tricycle / Rv Deep Cycle Lithium Ion Car Battery Safety 72V 60Ah IP65 UN38.3 / UL

E Tricycle / Rv Deep Cycle Lithium Ion Car Battery Safety 72V 60Ah IP65 UN38.3 / UL

Product Details:

Place of Origin: China
Brand Name: Soundon
Certification: UN38.3,UL ,CB ROSH
Model Number: EV-001-7260-02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Supply Ability: 100 pcs / day
Contact Now
Detailed Product Description
Rated Voltage: 76.8V Capacity: 60Ah
Configuration: 3P20S Standard Discharge Current:: 0.5C
Working Voltage: 50.0~73.0V Standard Charge Current: 0.2C
Warranty: 2 Years Protection Level: IP65

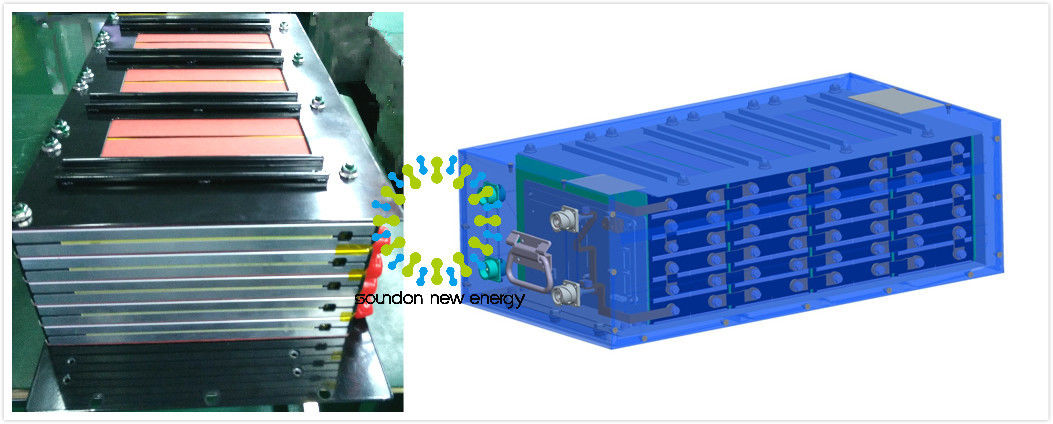

 Longer Cycle Life 72V 60Ah Lithium Car Battery  For E Tricycle , E Tourist Car





Specifications:

Item

Tech Data

Compound mode

3P 24 Series

Rated voltage/Capacity

76.8V/60Ah

Voltage Working Range

60.0~87.6V

Discharge Cut off Voltage

60.0V

Charge



Standard charge current

0.2C

Instantaneous Charge current

3C

Discharge



Standard discharge current:

0.5C

Instantaneous discharge current

5C

Working Temp. Range

Charge:(0~40)℃

Discharge: (-20~60)℃

Impedance

≤25mΩ

Cycle life

≥1000

Total Weight

≤60Kg



Features:

   Long cycle life

   Good consistency of the battery pack

  wide range of operation temperature

   Stable discharge voltage performance, good rate performance

   Environmentally-friendly product, non-toxic, production under standards of ROHS

   With a smart BMS, showing the real-time voltage and with a low voltage alarm



The battery pack is equipped with a smart BMS:



   Display for exact voltage:

(1)Showing the real-time voltage. Such as 00.00V.

(2) Low voltage alarm: It monitors the voltage of battery pack, and buzzers when pack voltage below a safe voltage. The buzzer will keep alarming for 1 minute. The setting point of voltage can be adjusted by external potentiometer.



Packing:

(1)We can pack your goods as Blister or your requirements.

(2) Samples checking: sending by Express ( DHL / UPS / FEDEX/ TNT ,by air)

(3) Bulk production: sending out by cargo shipping / air/freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.

(4) We are not responsible for any accidents, delays or other issues that are caused by

the shipping.
