Safety LiFePo4 12V 100Ah Storage Battery Systems For Emergency Power Supply , UPS

Minimum Order Quantity : 1 Price : Negotiation
Packaging Details : carton box package Delivery Time : 7-10 days for sample , 20-25days for mass
Supply Ability : 500 Units / week
Place of Origin: China Brand Name: Soundon
Certification: ROHS ,MSDS,CE ,UN38.3 Model Number: SD-ESS-12100

Detail Information

Capacity ,voltage: 12V60Ah Dimension: 265*156*200mm
Battery Material: Lifepo4 Configuration: 4S2P
Cycle Life: More Than 2000times At 80% Capacity Application: Solar Street Light ,LED Light
Continuous Discharge Current: 50A Max Instantaneous Discharge Current: 100A
High Light:

solar backup batteries

,

solar powered batteries

Product Description

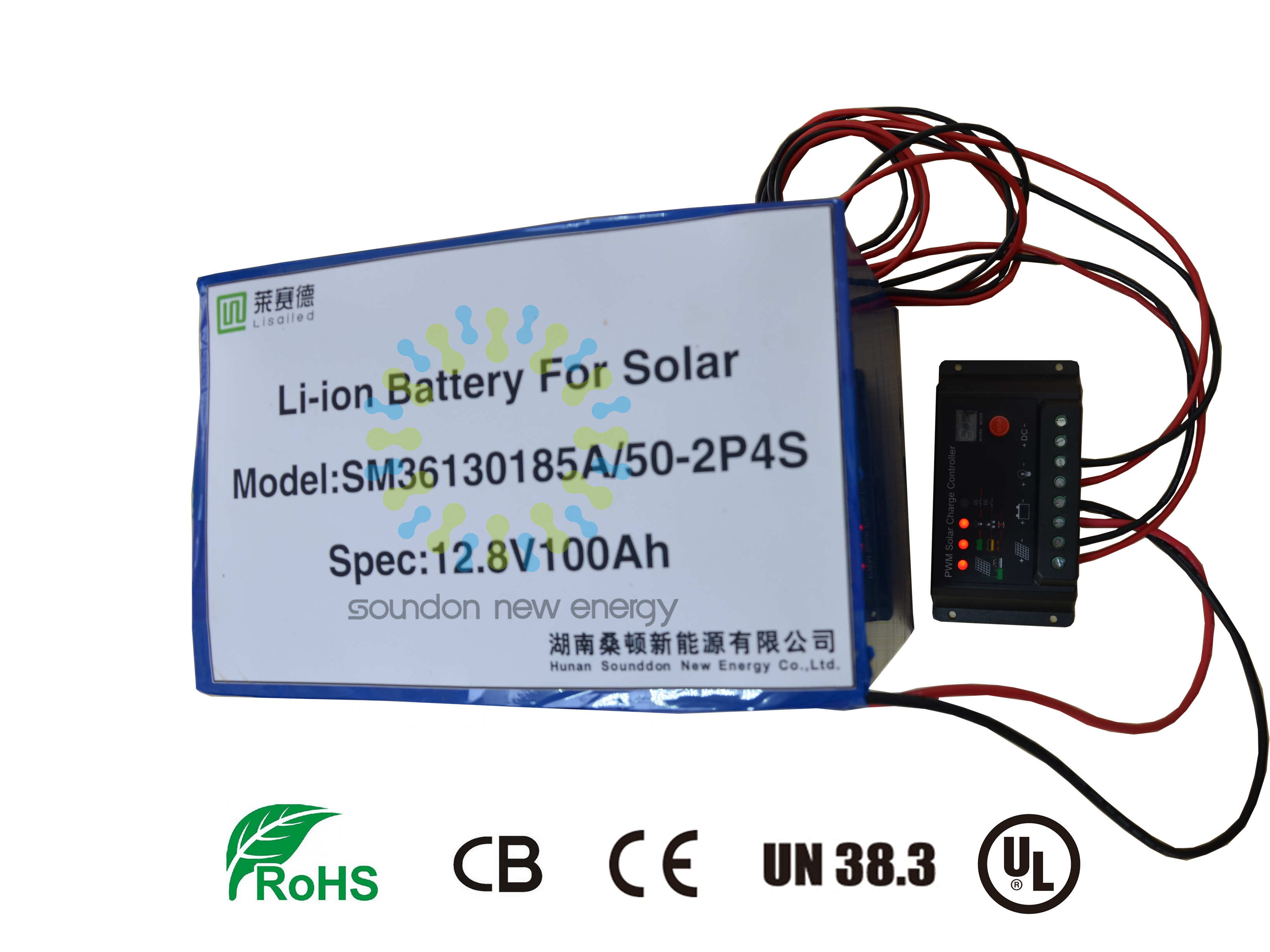

Safety LiFePo4 12V 100Ah Storage Battery SystemsFor Emergency Power Supply, UPS



Battery pack parameters





Specifications:



Item Parameter Remark
Normal Voltage 12.8V 100AH
Charging Voltage 14.6V±0.05V
Inner resistance < 200mΩ(Max) 10mΩ(Max)
Dimension 265*156*200mm included the BMS
Standard Charge 0.2C5A Charging Current 0.2C5A
Charge Time    7Hrs

Cut off discharge

Voltage

8.8V
Overcharge Voltage 3.75±0.025V/cell Max 15V/battery pack
Over Discharge end of Voltage 2.2±0.08V/cell Min 8.8V/battery pack
Over Current 40A±0.2 A
Short Circuit Recover after removing the short circuit load
Working Consumption Current 50uA (Max)
Temperature Charge 0~45℃
Discharge -10~45℃
Storage Temperature

-10℃-45℃

Recommend(25±5℃)

Storage capacity should be 40%~50% full charge capacity
Lifespan More than 2000 times




       Description:



             This System consists of solar cell matrix, batteries, inverter control one machine, the main  function are as follows:



1. The solar cell matrix:



solar panel is ​​the role of solar radiation directly transfer into electrical energy supplied to the load use. Usually by a number of solar cell modules connected by a certain manner, matched with the holder and connection box.



2. The battery:



the battery pack is solar energy storage devices. Its role is to square the excess energy produced when sunlight stored up in the night or rainy days for load.



In the solar photovoltaic power generation system, the battery is floating discharged state, a large amount of sunshine in the summer, in addition to the electricity supplied to the load,



the panel is also charging the battery; reduce the amount of sunlight in the winter, this part of the gradual release of energy stored during the day phalanx to charge the battery, (power to the load while also square), then all night load electricity supplied by the battery.



           3. All-in-one inverter control:  to prevent battery overcharge and over discharge, when there is no                  sunlight to prevent  battery discharge through the solar cell matrix, the inverse matrix and low-               voltage  DC battery provides into 220 volts AC for the load.



           How the solar panel working :



       1.Solar panel by sunlight, convert light energy into electrical energy

       2. Inverter Controller electrical energy generated by solar panels is sent to battery storage

       3. electricity, the inverter controller batteries power reasonably allocated to different appliances



Safety LiFePo4 12V 100Ah Storage Battery Systems For Emergency Power Supply , UPS 0







      .
