Place of Origin:
China
Brand Name:
Soundon
Certification:
ROHS ,MSDS,CE,MSDS
Model Number:
SD-ES-48200
Specifications:

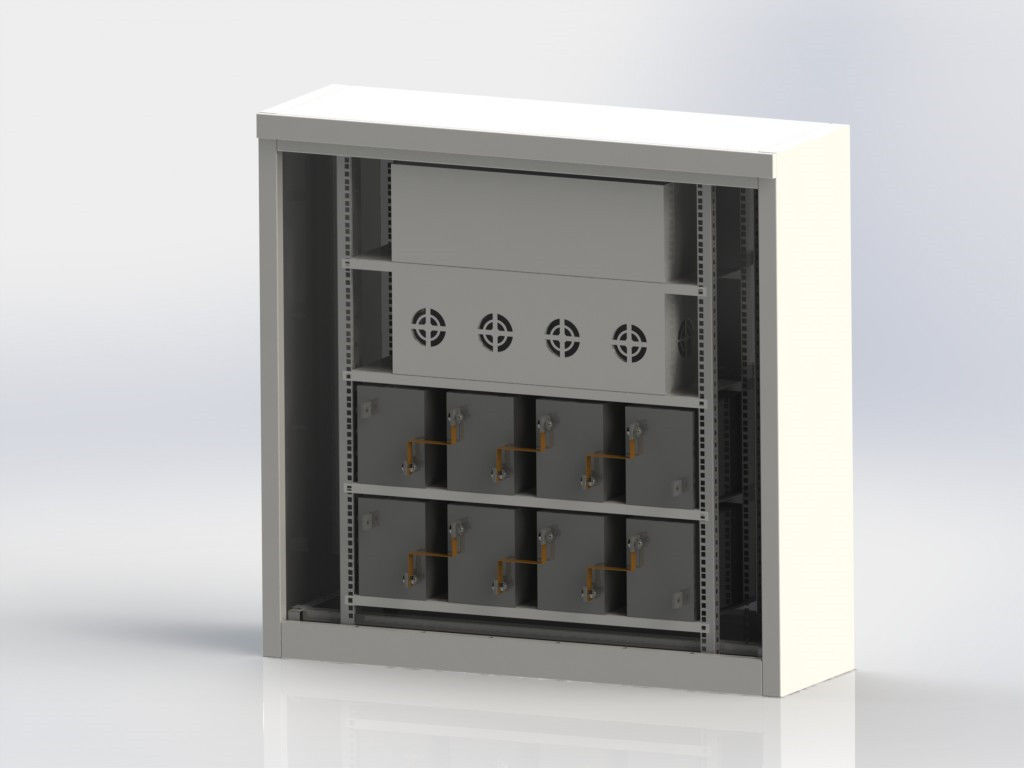

Lifepo4 48V 200Ah Storage Battery Systems can match many inverter For Home Solar Backup Battery
Specifications:
No. | Content | Parameter | Remark | ||
Battery cell
|
1 | Rated Voltage | 3.2V | ||
2 |
Capacity
|
Rated Capacity:20Ah
|
Standard Discharge Current: 0.5C Discharge Cut off Voltage: 2.0V |
||
3 |
Charge cut off Voltage
|
3.65V±0.03V | |||
4 | Impedance | ≤2.5mΩ | |||
Battery pack | 5 |
Compound mode
|
10Parallel15Series
|
||
6 | Capacity | Rated Capacity:200Ah |
Standard Discharge Current: 0.3C Discharge Cut off Voltage:30V
|
||
7 | Rated Voltage | Average Voltage:48V | |||
8 | Operation voltage | 30~54.8V | |||
9 | Charge Situation | Standard charge current:0.2C | |||
Rapid Charge current:0.5C | |||||
Instantaneous Charge current:2C | |||||
10 | Discharge Situation | Standard discharge current:0.3C | |||
Rapid discharge current:2C | |||||
Instantaneous discharge current:3C | |||||
11 | Impedance | ≤100mΩ | |||
12 | Operating Temperature | Charge | (0~60)℃ | 60±25% humidity | |
Discharge | (-20~60)℃ | ||||
13 | Cycle life | ≥2000times(90%) |
Operation voltage 30~54.8V In 0.2Ccharge /0.3C discharge |
||
14 | Storage Temperature | 15℃~45℃ | Relative humidity≤90% |
Description:
Home energy storage system
The energy storage and emissions reduction consciousness and the demand is growing .
It is the time of well storage and smart usage of household electricity.
household power storage system is not only a simple electricity storage system, but also the combination of electricity system and solar power system, which realized the life of new electricity power.
In the daytime using the electricity stored in the night, energy saving.
Charge the power storage system in night time of less electricity consumption, and in the daytime use the electricity that stored in the night, contribute to restrain power waste.
Connected to solar power generation system, it can supply power directly to household appliances, or charge the power storage system with the redundant power, to reduce the use of electricity from Grid system.
Reassurance
When there is a power failure, the stored electricity can be used as backup power, the product has the function of UPS.
When there is a power failure, the product act as an emergency power supply for LCD TV and LED lighting, and other important electric application, to ensure continuous output power.
Support Remote monitoring
The battery system utilization can be showed on LCD screen, automatic management and alarm. Or you can use portable terminal and realize remote monitor through the internet, safe use.
POWEROAK household power generation and storage system is able to set different working mode according to household lifestyle.
Feature :
1. Large voltage and capacity, 200A working current is available.
2. Cabinet design, battery , BMS ,overcharge and discharge current circuit pretection system cooling system are included.
3. wide applications , such as telecom tower, solar system and any other emergency device.
4. Supporting CAN-BUS function, battery cells, BMS and Chargers are communicable.
5. With a LCD display, can display parameters of battery, temperature, SOC value, etc.
6. other functions can be customized.
