Place of Origin:
China
Brand Name:
Soundon
Certification:
MSDS,ROHS ,UN38.3
Model Number:
EV-001-72100-01
Specifications:
| Item | Tech Data | |
| Compound mode | 5 P 24 Series | |
| voltage/Capacity | 72V/100Ah | |
| Voltage Working Range | 60.0～87.6V | |
| Discharge Cut off Voltage | 60V | |
|
Charge Conditions |
Standard charge current | 0.2C |
| Rapid Charge current | 1C | |
| Instantaneous Charge current | 3C | |
|
Discharge conditions |
Standard discharge current | 0.5C |
| Rapid discharge current | 3C | |
| Instantaneous discharge current | 5C | |
| Working Temp. Range | Charge:(0～40)℃ | |
| Discharge: (-20～60)℃ | ||
| Impedance | ≤25mΩ | |
| Cycle life | ≥2000 cycles | |
| Total Weight | ≤100Kg | |
Applications:
1.pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.
2.solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.
3.communication base station power supply, utility power supply, communication industry, emergency power
Advantages:
1. High capacity and energy density
NCM Cell capacity: 10-25AH; energy density: 180WH/KG;
Lifepo4 battery cells capacity : 20~50AH, energy density: 130WH/KG
2.Longer cycle life
NCM Battery cells cycle life; 1C/1C 100%DOD, at 2000times, with 80% SOC;
Lifepo4 battery cells cycle life; 1C/1C 100%DOD,at 3000times, with 80%SOC

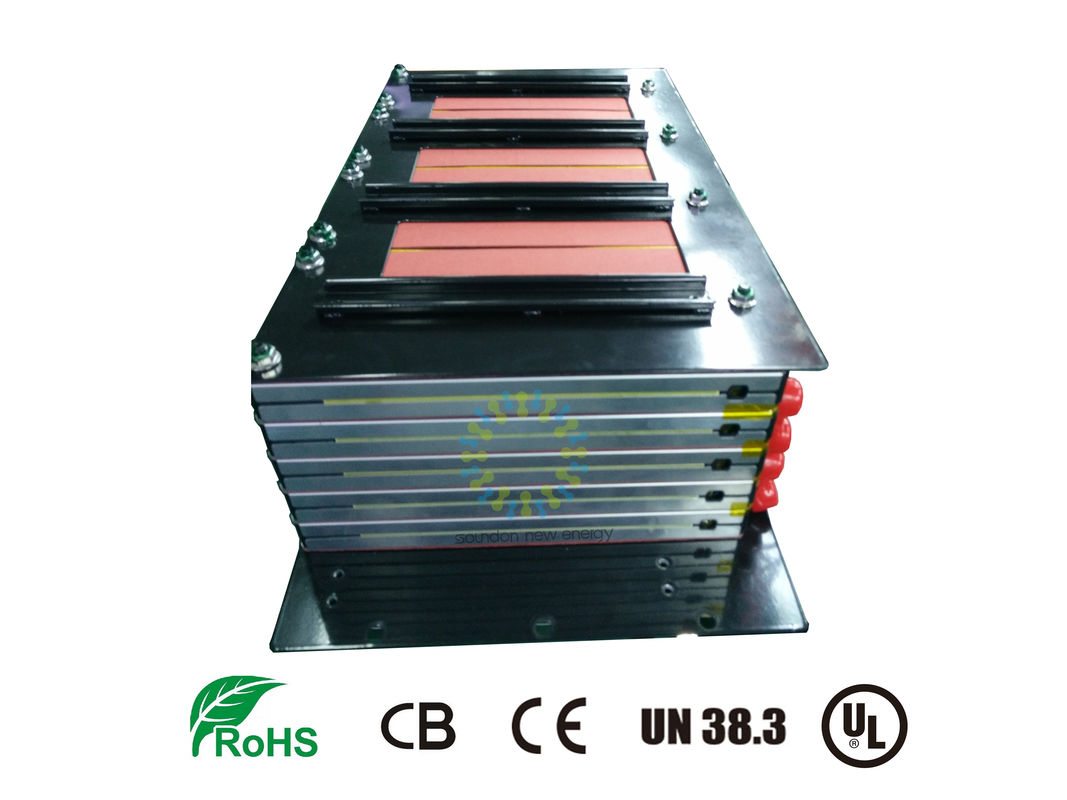

3. Flexible design of primastic case ;
Flexible combination such as 3P/4P/5P small battery module, meeting the requirements of different customers
Our unique battery shell made of alluminium alloy, protecting the pouch from damage, also contributing to heat dissipation performance.
Laser welding used for the module formation, to lighten the weight, and the energy density of the module is 160Wh/kg
