Place of Origin:
China
Brand Name:
SOUNDON
Certification:
UN38.3, ROHS,MSDS
Model Number:
SEPFe12212268P-50Ah

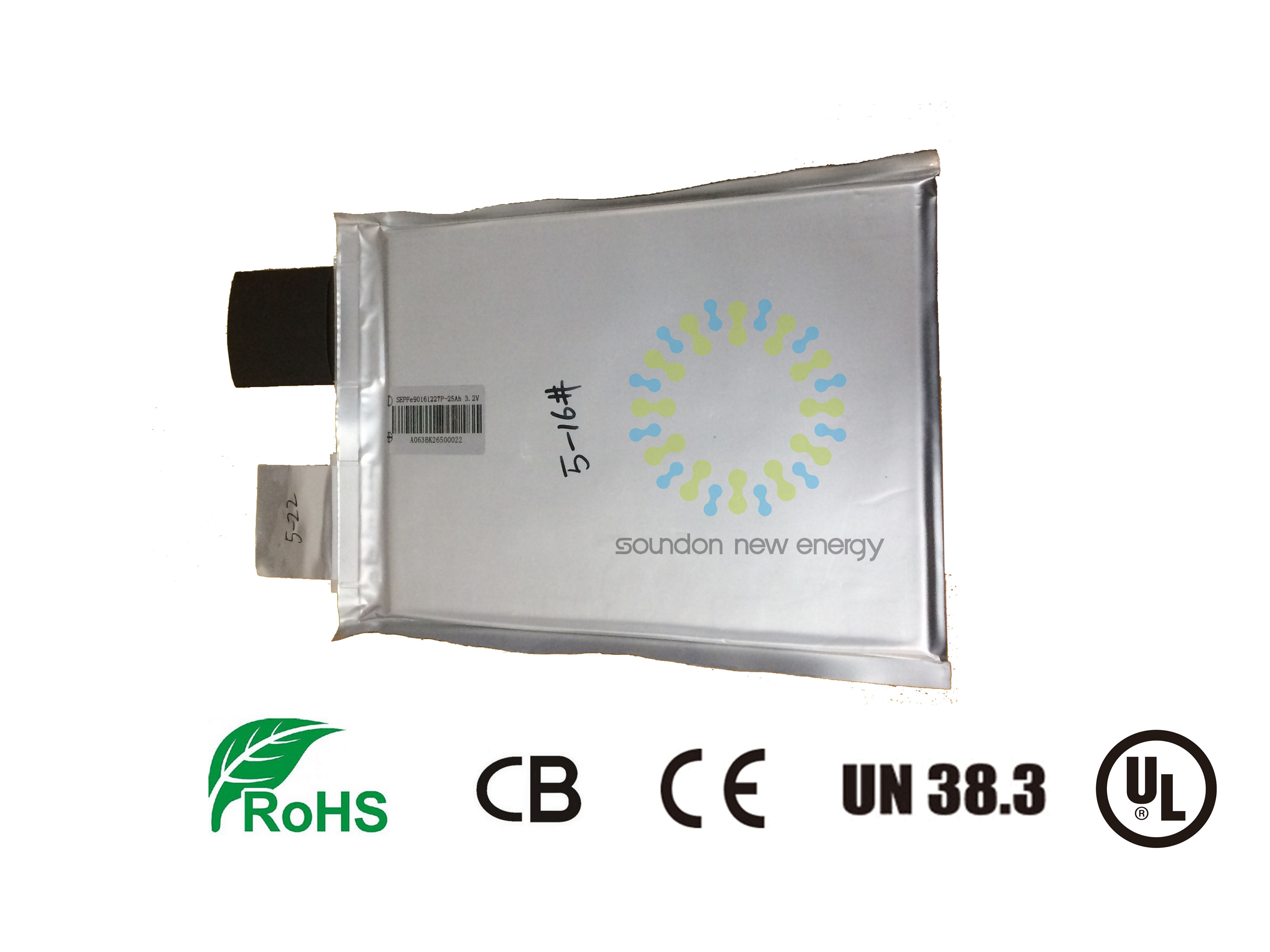

High Power Density 11190316 50 Ah Lithium Iron Phosphate Cells For Electric Buses
Specification :
Capacity: 50Ah prismatic soft case
Voltage: 3.2V
input cut off voltage: 3.65V
output cut off voltage: 2.0V
Normal charge and discharge current: 0.5C
Max input current: 1C
max output current : 2C
Instantaneous charge and discharge current :3C
Impedance(mΩ):≤1.8
Storage temperature:≤1 month: -20~+50℃
＞1 month: -10~+35℃
Working Temperature: charge : 0~+45℃
Discharge: -20~+60℃
Weight:1170±50g
Cycle life:〉2000 times at 80% of capacity
Lifepo4 battery advantage :
1. LiFePO4 battery is smaller and lighter comparing with lead acid battery in same capacity. It saves space.
2. LiFePO4 battery can release more power and the life is longer at severe environment. Its starting ability at low temperature is stronger.
| Item | LiFePO4 battery |
| Over charge | No explosion, no fire, highest temp <130℃ |
| Over discharge | No explosion and no fire |
| Short circuit | No explosion, no fire, surface temp <150℃ |
| Thermal shock | No explosion, no fire |
| Heavy shock | No explosion, no fire |
| Vibration |
Surplus capacity ≥ nominal capacity ×95％ No obvious damage, no leakage, no smoke, no explosion |
| Drop | No leakage, no smoke, no explosion |
5. LiFePO4 batery discharge at high rate,higher starting current
6.LiFePO4 -- No pollution
No any heavy metal and rare metal. no harm to human and environment when producing, transporting, using and abadon !
Electric Vehicle Lifepo4 battery pack Model list :
| Module | Voltage | Capacity | Application | Battery cells Type |
| EV-64400-01 | 64 | 400 | Electric Sanitation vehicle | Lifepo4 |
| EV-96240-01 | 96 | 240 | Electric Sweeper truck | Lifepo4 |
| EV-384200-01 | 384 | 200 | Electric business vehicle | Lifepo4 |
| EV-384180-02 | 384 | 180 | Electric 7.2 meter business vehicle | Lifepo4 |
| EV-001-72100-01 | 72 | 100 | Tourist electric car | Lifepo4 |
| EV-001-7260-02 | 72 | 60 | Tourist electric car | Lifepo4 |
| EV-001-6060-01 | 60 | 60 | Tourist electric car | Lifepo4 |
| EV-002-6050-01 | 60 | 50 | Tourist electric car | Lifepo4 |
| EV-537144-01 | 537.6 | 144 | 7 MetersElectric passenger car | Lifepo4 |
| EV--538160-01 | 537.6V | 160Ah | 8.3 meters Electric passenger car | Lifepo4 |
Application :
Lifepo4 battery pack are main to applied in Electric Sanitation vehicle ,Electric passenger car ,electric pure car ,electric transport vehicle ,electric tourist ,electric tricycles .
