Place of Origin:
China
Brand Name:
SOUNDON
Certification:
UN38.3, ROHS,MSDS,UL
Model Number:
SD -EV--360V81 Ah

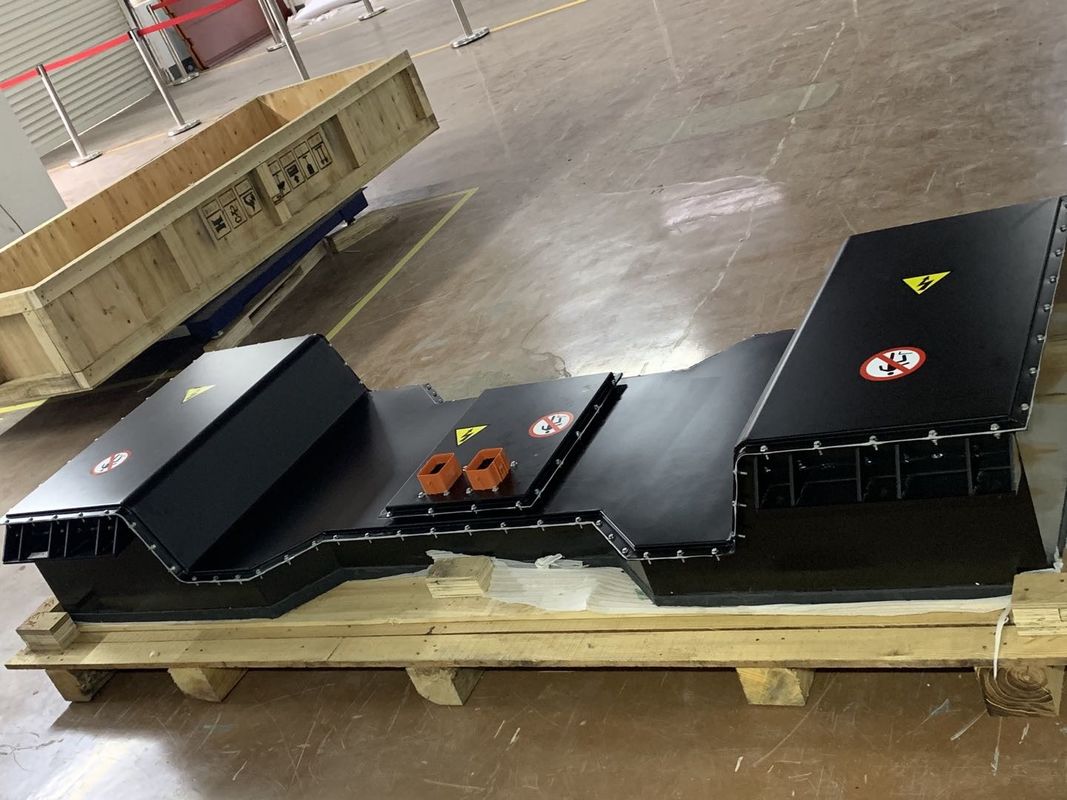

360V81Ah Electric Truck Battery With High Current Rating ,High Energy Density,Fast Charge
Specifications:
| Battery Chemistry | NCM | ||||||
| Cell Type | Pouch | ||||||
| Cell Rated voltage | 3.6 V | ||||||
| Cell Rated Capacity | 13.5Ah | ||||||
| Cell Parallel and Series | 6P100S | ||||||
| Battery pack rated Voltage | 360V | ||||||
| Battery pack rated Capacity | 81Ah | ||||||
| The total energy of the battery | 29.160kwh | ||||||
| Battery box number | 1 Battery box | ||||||
| Battery charge / discharge current | Charging: rated current: 40A, the peak current: 320A is (regenerate current) | ||||||
| Discharge: rated current: 120A, peak current: 480 A | |||||||
| BMS mounting position | Inside Battery box | ||||||
| Current direction | Discharge “-“, charging “+” | ||||||
| Low Voltage | BMS power supply | Lead Acid | |||||
| Continuous power | |||||||
| BMS supply voltage | + 12V | ||||||
| Waken | Charge /Discharge | ON | |||||
| Current Detection | Shunts | Using the FL-2 400A / 75mV | |||||
| current sensor | Not Apply | ||||||
Description:
Soundon Electric vehicle and energy storage battery cells :
| Soundon Cell List | ||||
| Model | SEPNi8688190-13.5Ah (Fast charging/discharging) |
SEPNi8688190P-17.5Ah | SEPNi11217127P-32Ah | SEPNi11100302P-50Ah |
| Rated Capacity(Ah) | 13.5 | 17.5 | 32 | 50 |
| Typical capacity(Ah) | 14.2 | 17.9 | 32.96 | 51 |
| Rated Voltage(V) | 3.6 | 3.65 | 3.65 | 3.7 |
| Internal Resistance(mΩ) | ≤2.5 | ≤3.5 | ≤2.0 | ≤1.5 |
| Thickness MAX(mm) | 8.6 | 8.7 | 11.5 | 11.8 |
| Width MAX(mm) | 92 | 92 | 217 | 101 |
| High MAX(mm) | 195 | 195 | 127 | 303 |
| Power(Wh) | 48.6 | 63.875 | 116.8 | 185 |
| Energy Density(Wh/Kg) | 178 | 220 | 217 | 252 |
| Energy Density(Wh/L) | 315 | 409 | 368 | 512 |
| High Temp performance (55℃) |
≥100% | ≥100% | ≥100% | ≥100% |
| Low Temp Performance (-20℃) |
≥75% | ≥75% | ≥75% | ≥75% |
| Self Discharge (RT28d) | ≤3% | ≤3% | ≤3% | ≤3% |
| 2C Discharge/ 1C | ≥97% | ≥97% | ≥97% | ≥97% |
| 3C Discharge/ 1C | ≥95% | ≥95% | ≥95% | ≥95% |
| C-Rate 2C CC/1C (CC+CV) | ≥88% | / | / | / |
| C-Rate 3C CC/1C (CC+CV) | ≥85% | / | / | / |
| C-Rate 4C CC/1C (CC+CV) | ≥82% | / | / | / |
| Time using of Charge to 80% SOC (min) | ≤15 | / | / | / |
| Power Density (W/kg)@ 50%SOC 25℃ 30S | ≥1500 | / | / | / |
| Cycle (RT) | 3C/1C≥3000 | 1C/1C≥2500 | 1C/1C≥2500 | |
| Mass production planning | Already Mass Production | Already Mass Production | Already Mass Production | 19th,March,2019 |
Soundon lithium battery feature
1.Unique lithium battery of Lamination Technology with prismatic case
2) .specilist for Electric vehicle and Energy storage battery cells in Lifepo4 , LI polymer with prismatic case
Lifepo4 battery and lipolymer battery cells
wide lifepo4 battery cells for chose :10Ah ,20Ah ,25Ah ,50Ah ,60Ah
lifepo4 battery energy density : around 140 WH/KG
3.International Product certification : UN38.3,CB ,CE, Rohs ,UL certification
4.Company Quality Approvals : ISO9001,ISO14001,TS16949 quality system standard approved
5.with ERP system can well control the cost and quality
Soundon New Energy introduction
Soundon New Energy is invested by Sound Group and stock jointed by Sound Environment(SZ000826)and Sound Global(Stock:HK00967). It’s an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
